Application
1982-2002 Camaro / Firebird / Trans Am
1982-1992
Will not accept factory drum or disc brakes
Can use 1981 and older drum brakes or 1998-2002 disc *
* Disc brakes will not clear 82-92 factory rims
1993-1997
Will accept factory brakes
Requires optional billet caliper mounts
1998-2002
Will accept factory brakes
Custom made to your specifications
Factory or custom widths available at no additional charge
Choice of housing ends
Professionally welded and assembled

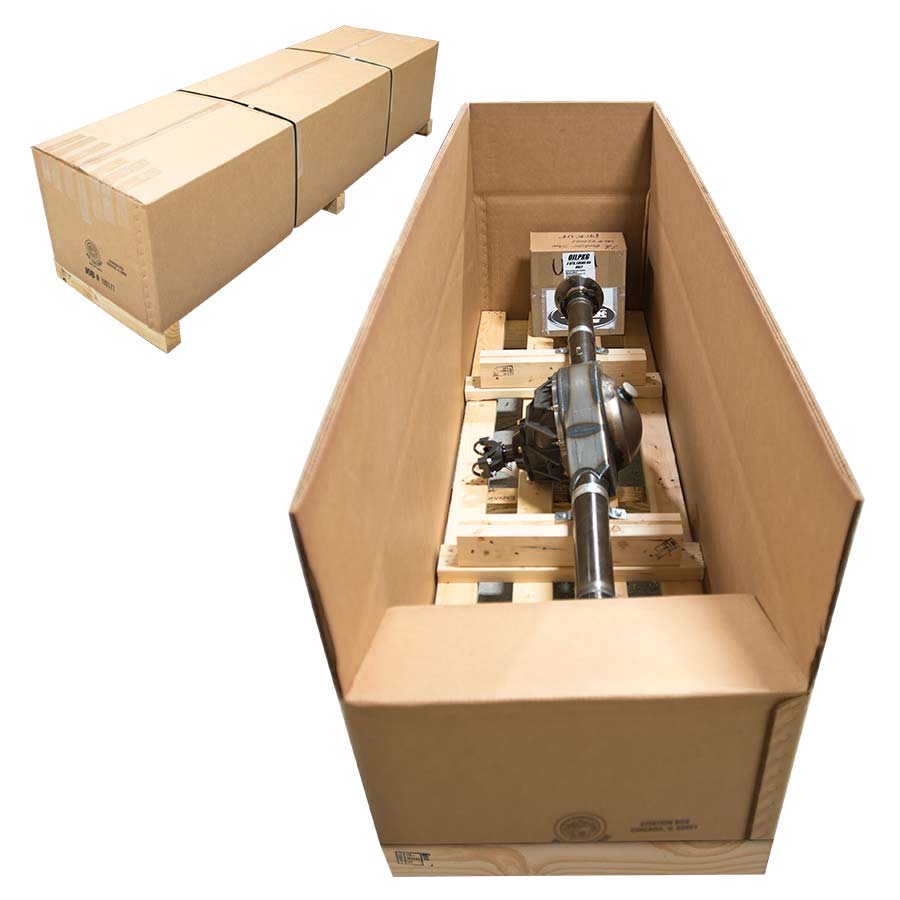

Crated to protect your investment
Aftermarket torque arm may need to be modified
Stock driveshaft will need to be replaced – See U1699F60 / U1699F60C
Information Required
Year of vehicle
Stock or custom width
Type of brakes
Housing ends
Gear ratio
Stud choice
Assembly Includes
S60 housing with F-Body mounts installed – H60GFME
35 spline Alloy Axle Package – P3502 / P3504
4 3/4″ bolt circle
Choice of wheel stud kit – A1035 / A1025 / A1026
35 spline helical gear differential – D3523 / D3533 / D3534
Choice of gear ratio
S-Series pinion yoke – U1600
Pinion yoke u-bolt kit – U1610
Dana / Spicer steel cover – D3505
Extended sway bar link kit
Fully crated – No extra charge
Gear Ratios
3.54 / 3.73 / 4.10 / 4.30 / 4.56 / 4.88 / 5.13 / 5.38
Upgrades
5/8″ stud kit – OPRS12
Chrome moly yoke – OPRS18
Black powder coat housing – H1199P-BLK
Options
93-97 billet caliper mounts – OPRG12
