Application – 1982-2002 Camaro / Trans Am
Description

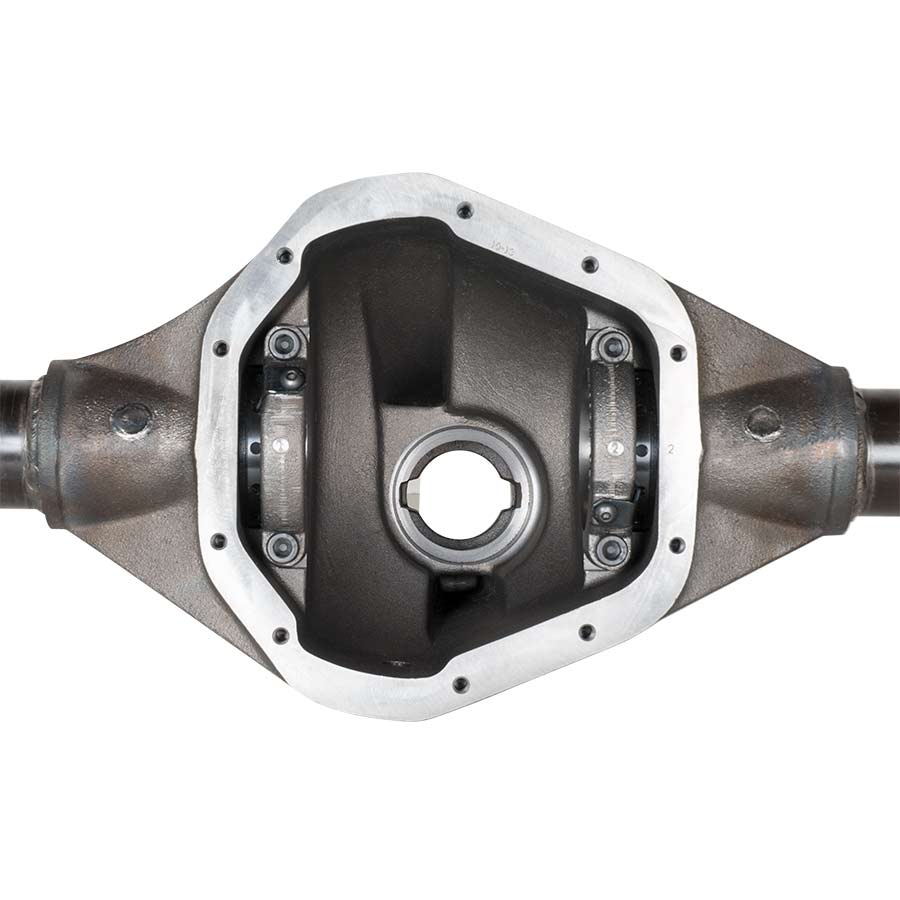

Strange S60 F-Body housing
Includes tubes, F-Body mounts, & choice of housing ends
Information Required
Housing ends
Housing width
Features

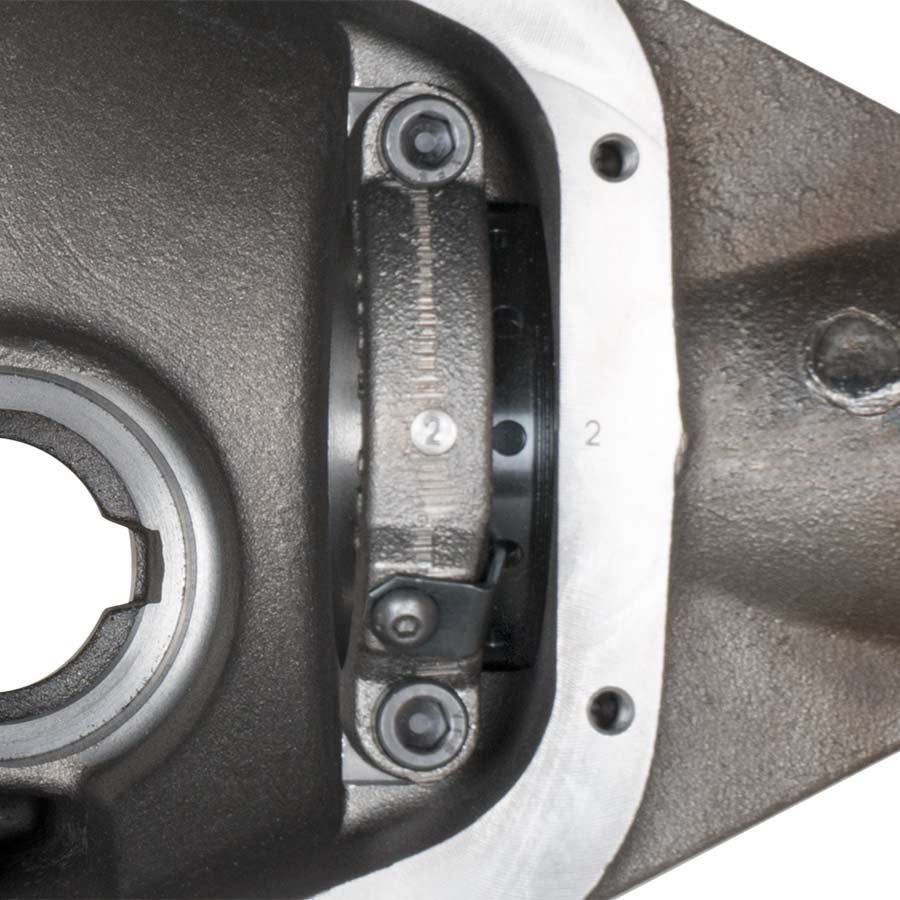

Nodular Iron Center – H1105A
– Integral torque arm provision
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Three channel sensor hole
– Accepts Dana 60 internal components *
* Uses different side bearing races

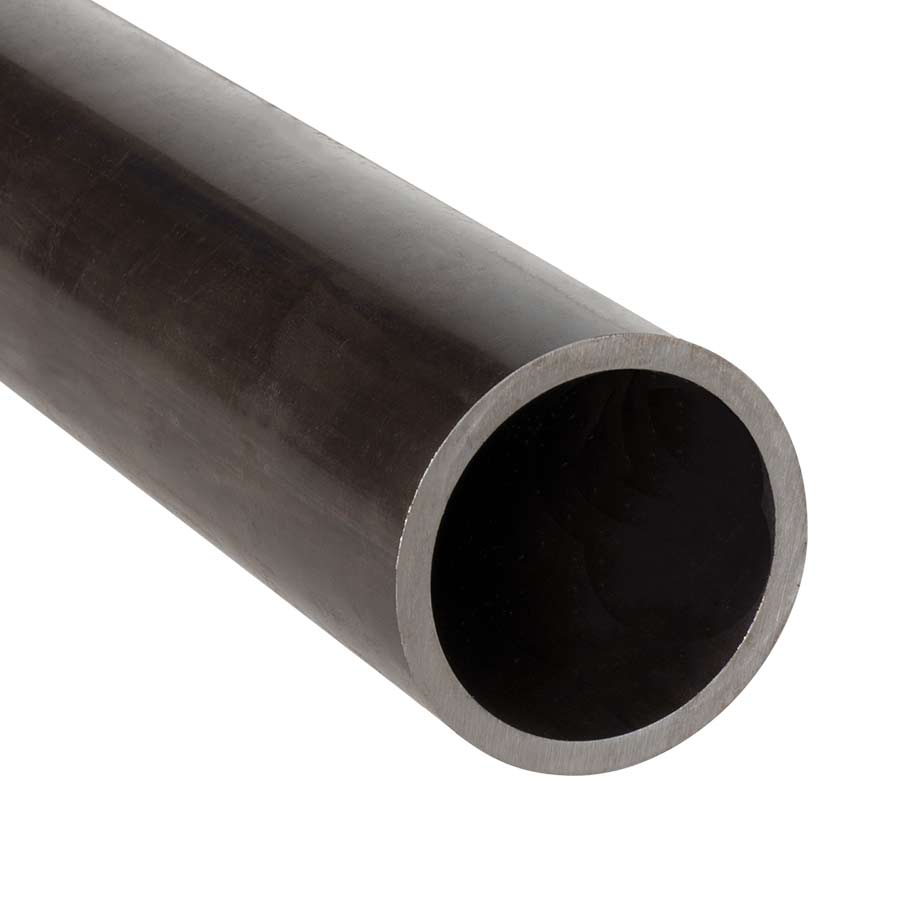

3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel
Choice Of Housing Ends – H1143 / H1144 / H1137
– Forged chrome moly
– Accepts 3.150″ tapered or ball style bearings
– H1144 end clearances for 4 channel ABS
Coil Spring & Lower Control Arm Mounts
– Strange heavy duty
– Multiple lower control arm mounting holes
– Provides wide range of traction adjustment
Choice Of Housing Width
– Factory width
– Custom width at no additional charge
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
Notes
Specify if using 3 channel, 4 channel, or no ABS
3 channel ABS utilizes OEM sensor
Rear End Covers
Aluminum covers will not fit due to limited vehicle clearances
Factory Drum Brakes
Will not fit 82-92 drum brakes
Must use 1980 and earlier
Factory Disc Brakes
93-97 require special caliper mounts
98-02 require housing end spacers
