For Strange HD 40 spline spools – D2002 / D2004
For D2000 40 spline spool – See P3203
Additional Parts Required
• HD Spool
• 9″ or 9 1/2″ gear set
• Yoke or coupler
• Completion kit
• Gasket
This Case May Not Fit Your Housing

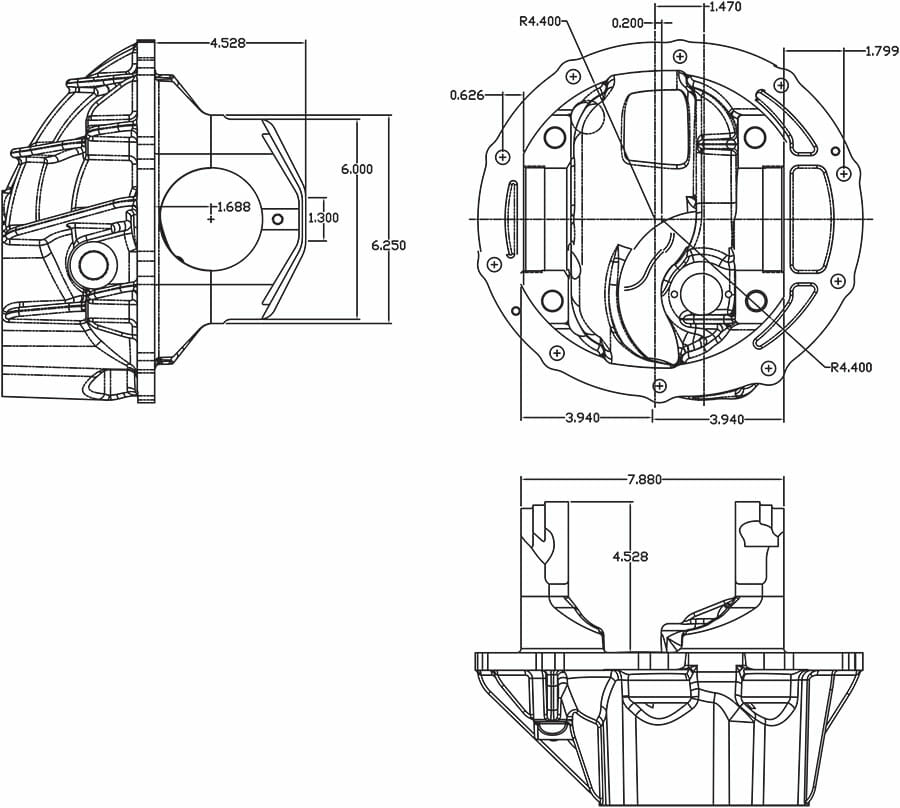

Please refer to housing clearance diagram

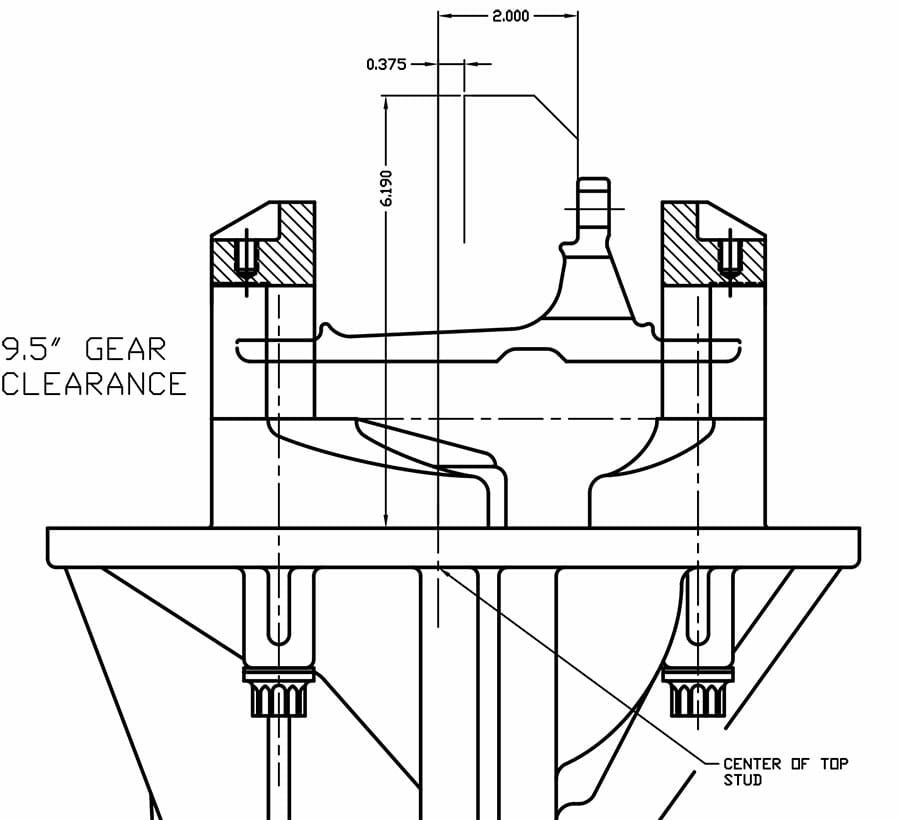

Using 9 1/2″ Gear Set
Check gear diagram for proper clearance

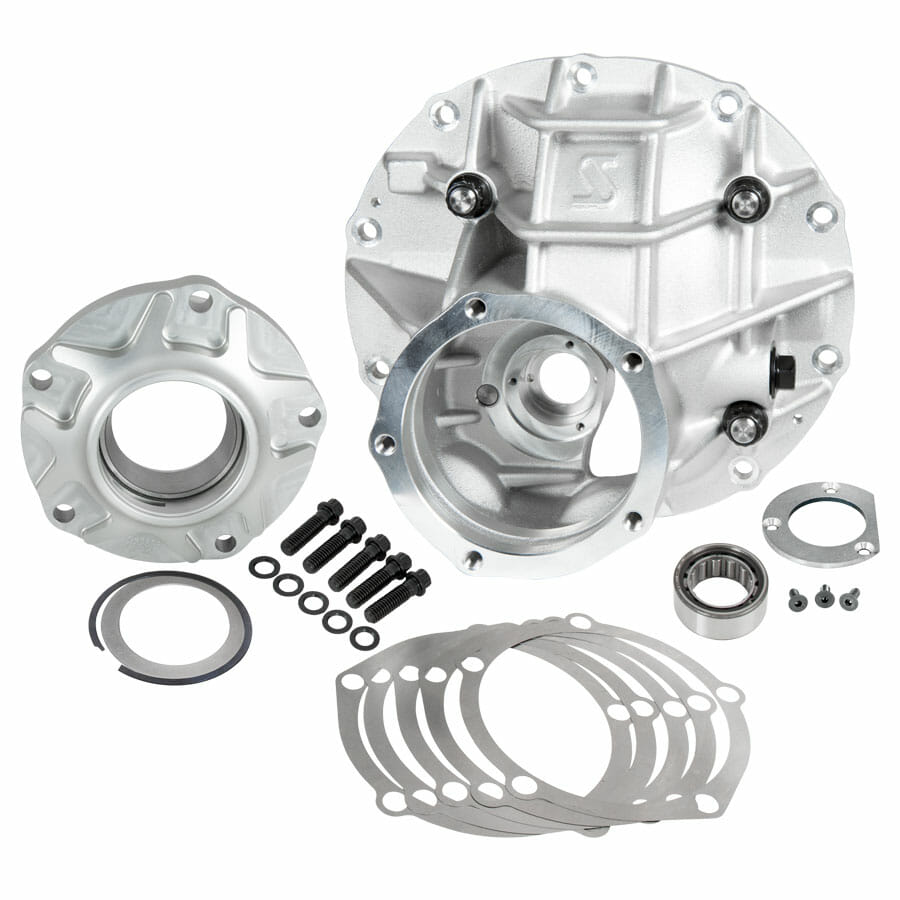

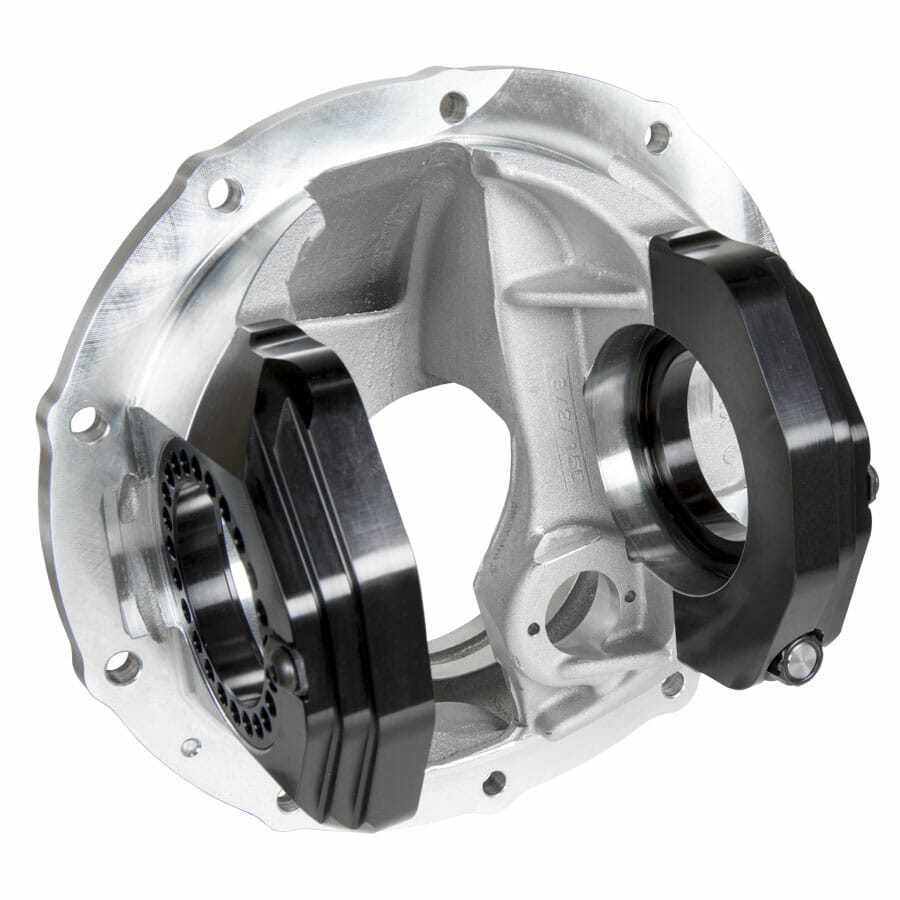

HD Pro Case – 3.812″ Bore
• Manufactured from 206-T4 heat treated aluminum
• 12% higher yield and 32% higher tensile strength compared to 356-T6
• Large oil channel provides optimal lubrication to pinion bearings
• Heavily reinforced tail bearing area
• Chrome moly studs encapsulated by billet aluminum main caps
• Solid adjuster nuts
• Accepts over-sized tail bearing for heavy loads and high RPM
• Designed for 9″ or 9 1/2″ gear sets

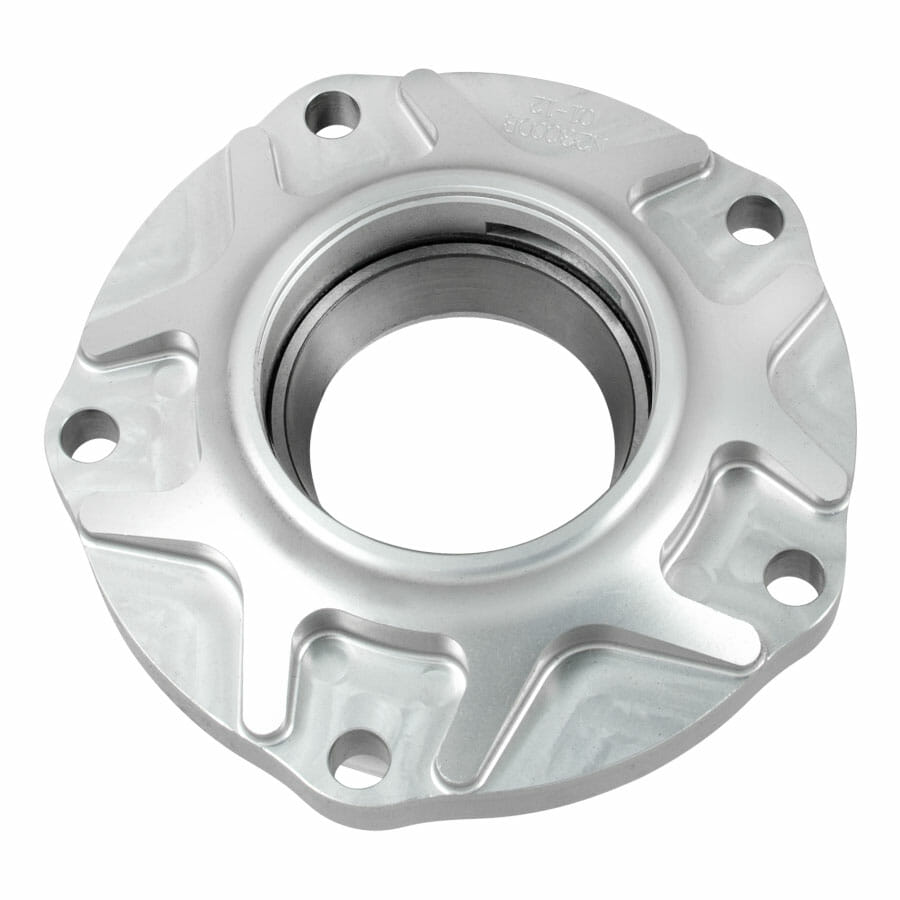

N2322
• Forged aluminum tapered bearing pinion support
• Pinion seal retaining plate and snap ring
• Timken® races installed
• Support bolts, washers, and O-ring
Additional Components
• High capacity wide tail bearing
• Retainer plate and screws
• Pinion depth shim kit
