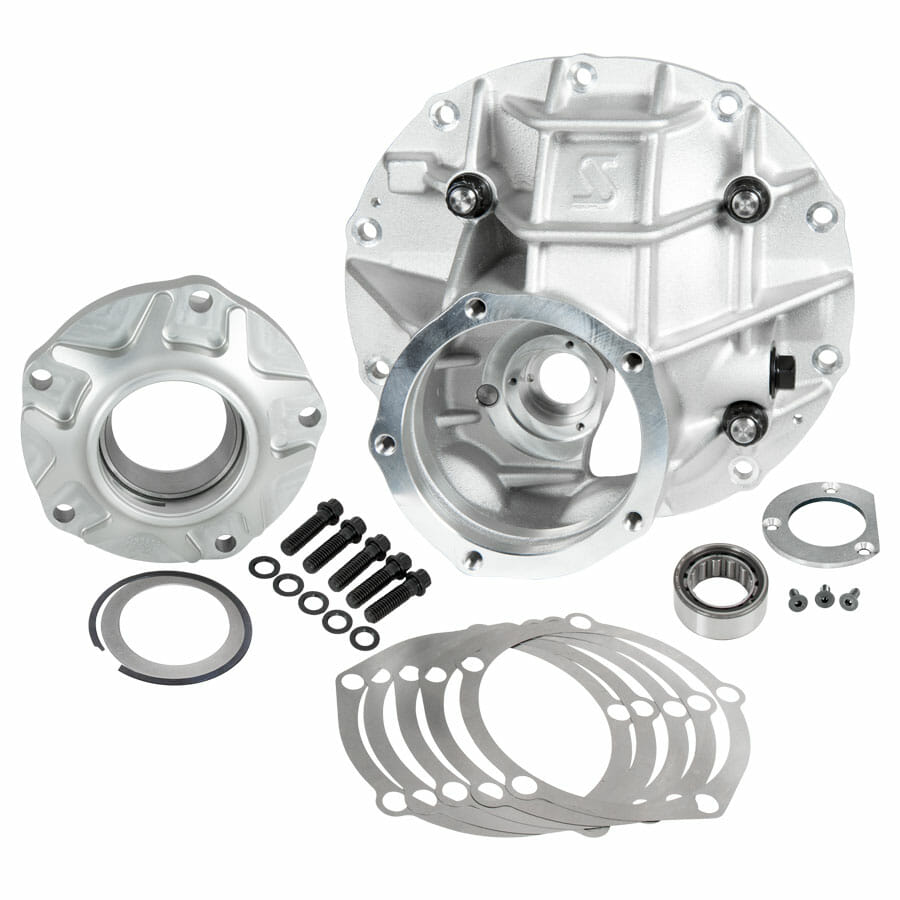

Strange HD Pro Aluminum Case Kit – 3.250″ Bore With Tapered Bearing Pinion Support

For 35 Spline Differentials
• Wavetrac® or ARB Air Locker® will not fit into a HD Pro case

For Strange 35 or 40 Spline Spools – D1555 / D2000

For D2002 / D2004 40 spline spools- See P3207

Additional Parts Required
• Differential or spool
• 9″ or 9 1/2″ gear set
• Yoke or coupler
• Completion kit
• Gasket

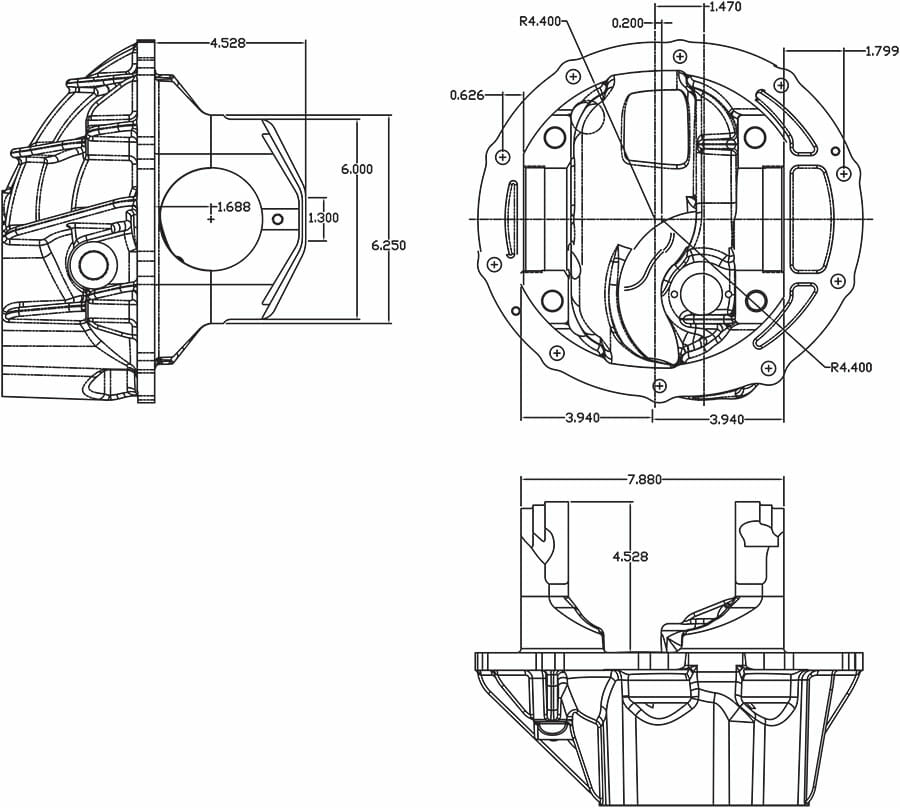

This Case May Not Fit Your Housing
Please refer to housing clearance diagram

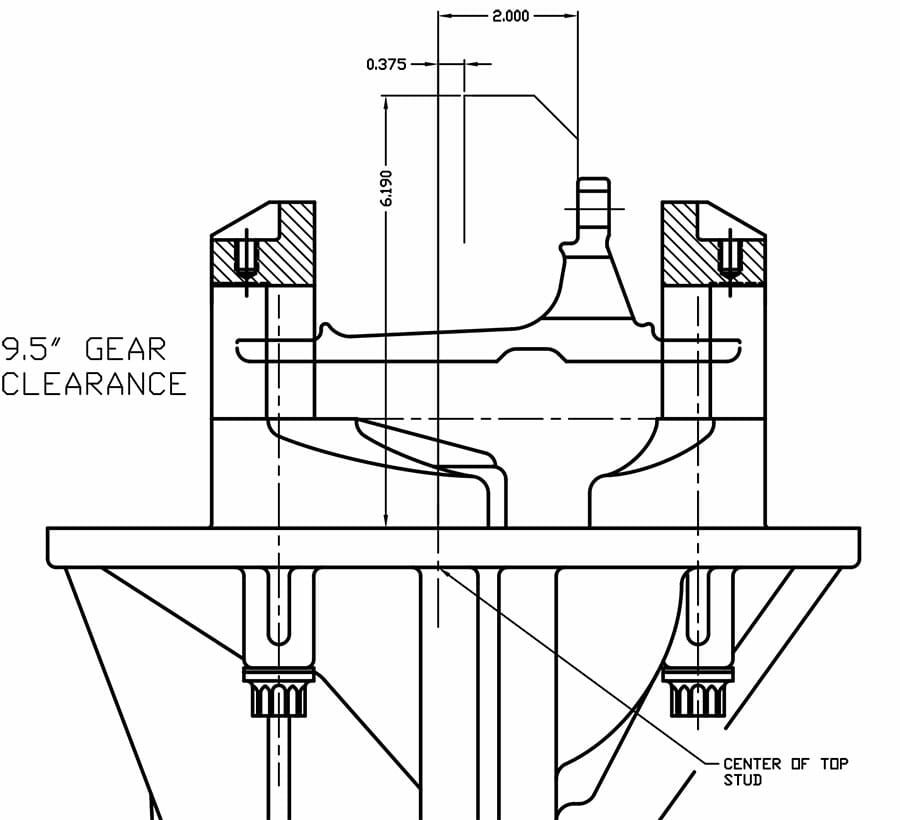

Using 9 1/2″ Gear Set
Check gear diagram for proper clearance

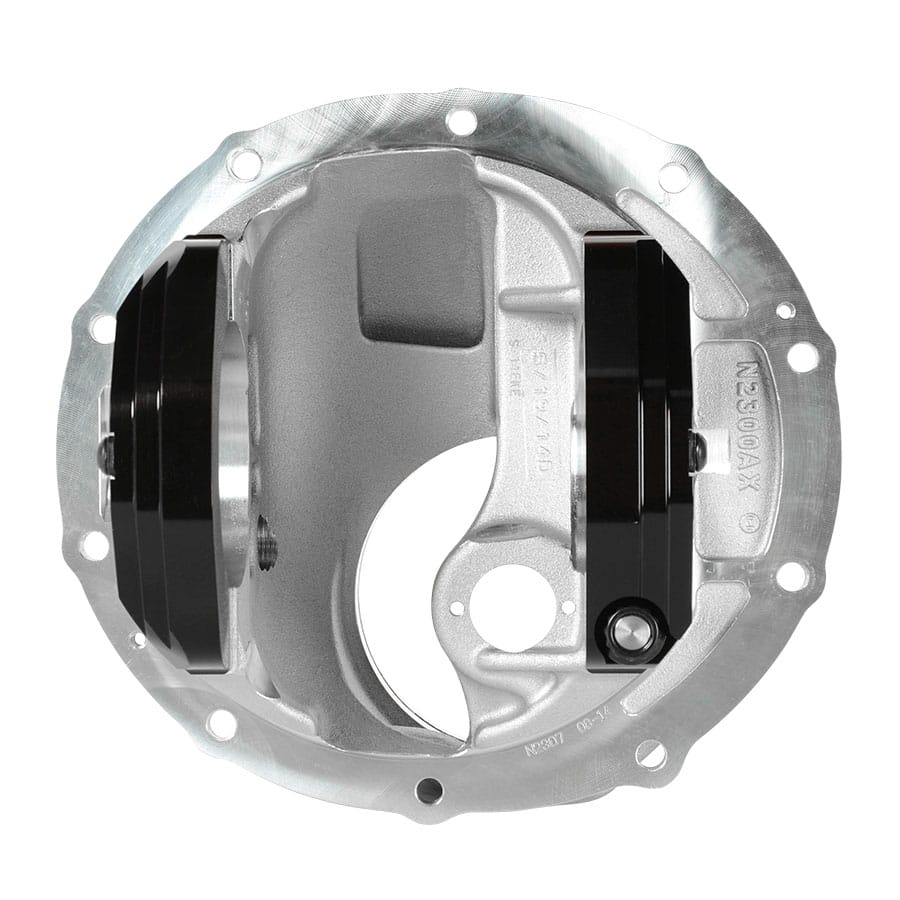

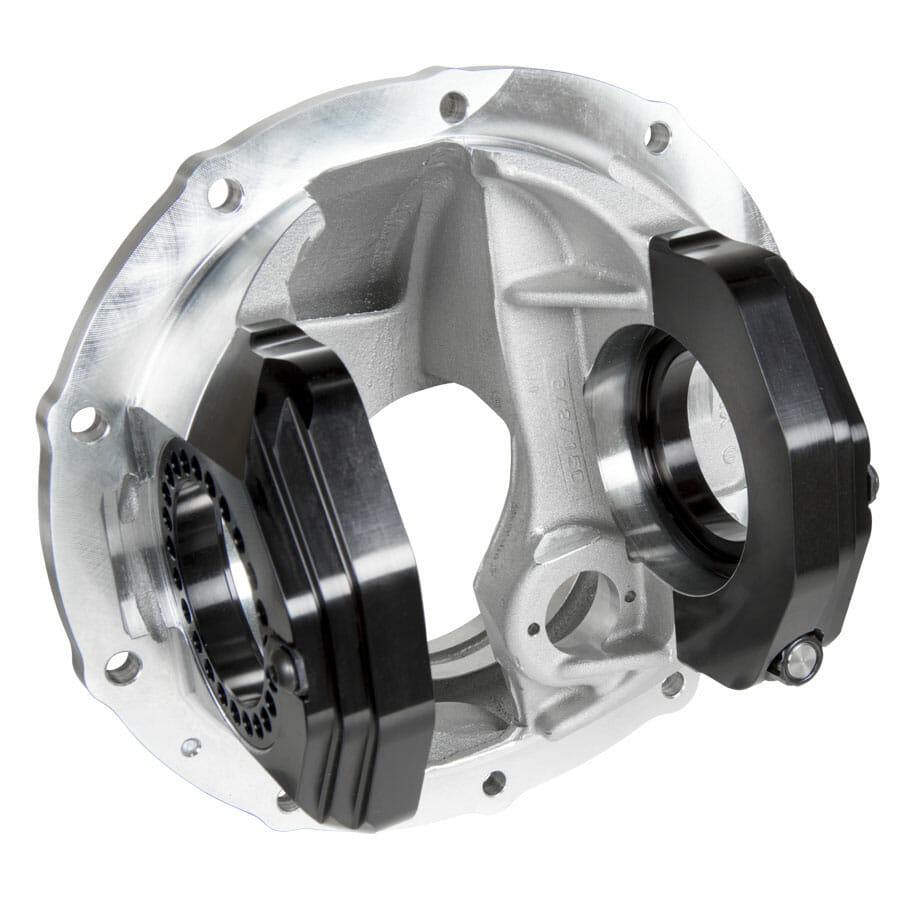

HD Pro Case – 3.250″ Bore
• Manufactured from 206-T4 heat treated aluminum
• 12% higher yield and 32% higher tensile strength compared to 356-T6
• Large oil channel provides optimal lubrication to pinion bearings
• Heavily reinforced tail bearing area
• Chrome moly studs encapsulated by billet aluminum main caps
• Solid adjuster nuts
• Accepts over-sized tail bearing for heavy loads and high RPM
• Designed for 9″ or 9 1/2″ gear sets

N2322

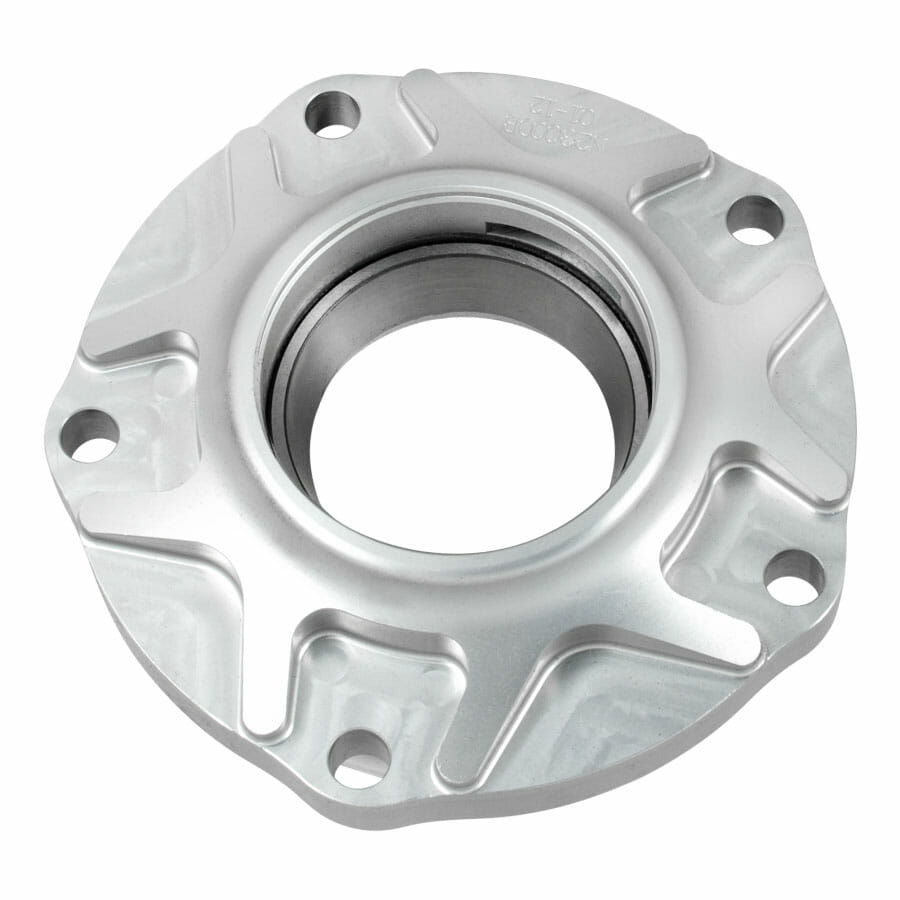

• Forged aluminum tapered bearing pinion support
• Pinion seal retaining plate and snap ring
• Races installed
• Support bolts, washers, and O-ring

Additional Components
• High capacity wide tail bearing
• Retainer plate and screws
• Pinion depth shim kit
