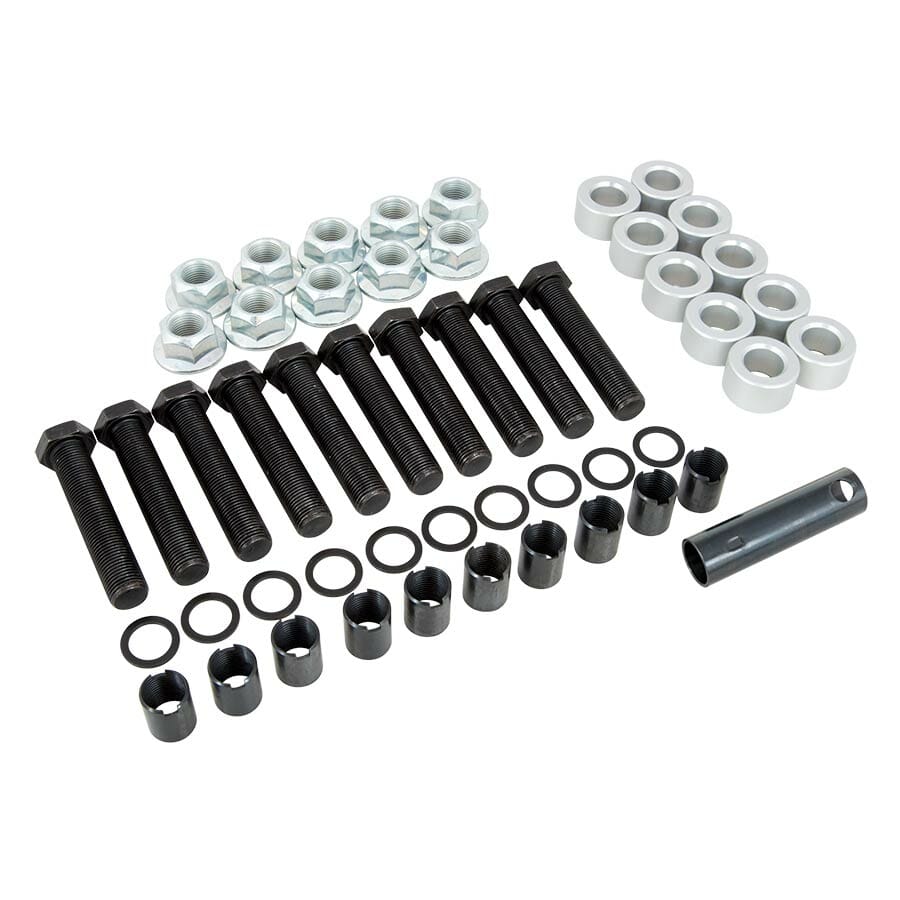

Strange 5/8″-18 x 3″ Sleeve Style Stud Kit Includes .875″ Wide Sleeves, Nuts, & .688″ Thick Washers

Part Number: A1027L
5/8″-18 x 3″ Grade 8 Fully Threaded Bolts
• Threads are rolled for maximum strength
• Thin .200″ hex head provides additional clearance
• Length is measured from underneath the head of the stud
• 7/8″ wrench size

.0625″ Hardened Washers
• Prevents galling
• Ensures hex remains true to backside of axle flange

.687″ O.D. x .875″ Stud Sleeves
– Provides proper diameter & surface to pilot wheel
– Internal 5/8″-18 threads to secure stud and prevent movement
– Notched for installation

Sleeve Installation Wrench
• Fits notch on sleeve to simplify installation

.688″ Wide Aluminum Washers
• Reduces marring on wheel face from flanged lug nut
• Keeps lug nut from bottoming-out on stud sleeve *

5/8″-18 Flanged Lug Nuts
• Provides secure clamping force
• 15/16″ wrench size

Rotor Hat & Wheel Thickness Determines Proper Washer Width
• Sleeve length should exceed combination but not beyond washer
• Additional sleeves are available – A1027C

With Other Width Washers
.250″ – A1027S
.438″ – A1027

Kits With Integral Shanks
A1036 / A1037 / A1037MD / A1038 / A1039 / A1041
