Application
1965-1966 / 1967-1972 F100 Pick-Up Truck
OEM mount locations
Factory 2″ pinion offset to the passenger side
Will Not Fit OEM Brakes
Shock mounts moved down 1.250″ and forward 2.75″ from factory locations
• Improves geometry for lowered vehicles
• Due to less ground clearance, may create issues in 4×4 applications
Custom made to your specifications
Factory or custom widths available at no additional charge
Choice of housing ends
Professionally welded and assembled

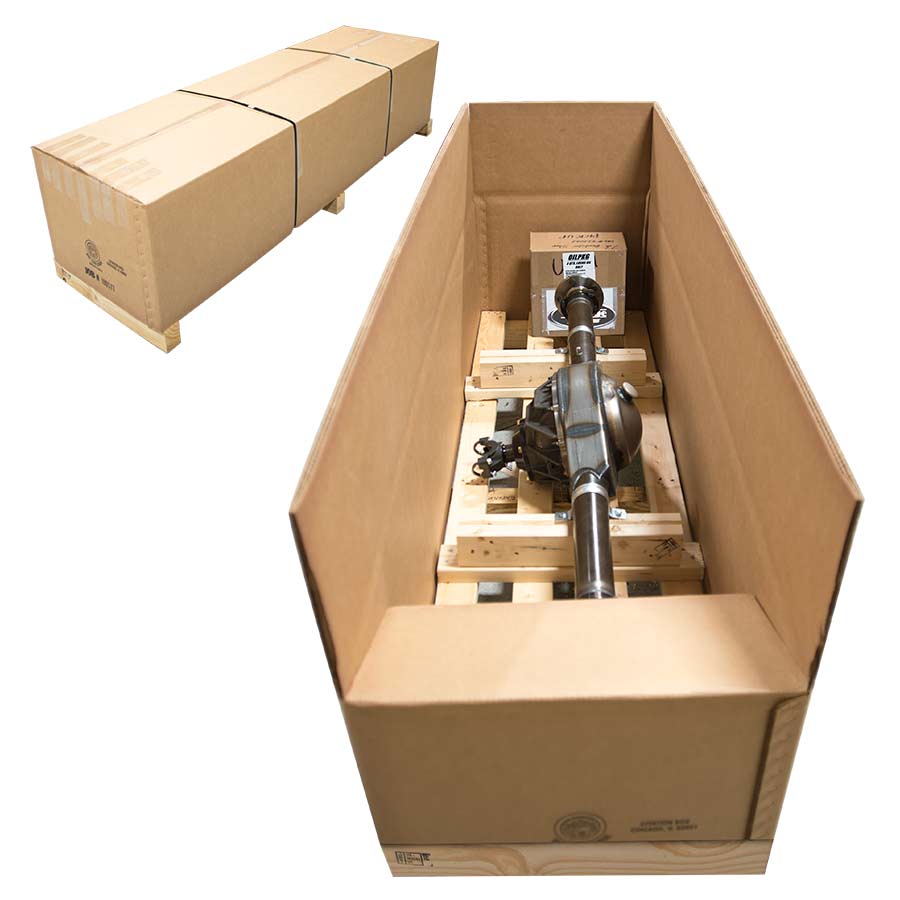

Crated to protect your investment

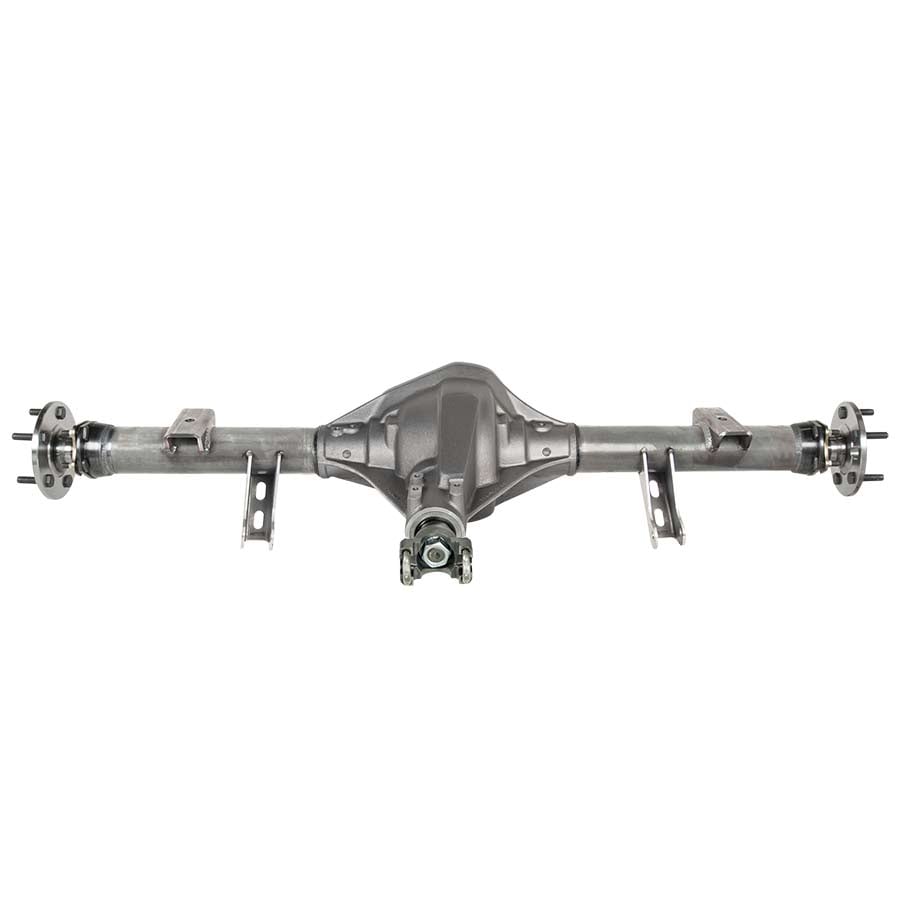

Assembly Includes
S60 housing with mounts installed – H60FT65F100ME
35 spline Pro Race Axle package
Choice of bolt circle and 5/8/” stud kit – A1027 / A1037 / A1038 / A1039 / A1041
35 spline Strange spool – D1544 / D1546
Standard gear set
Choice of gear ratio
S-Series pinion yoke – U1600
Pinion yoke u-bolt kit – U1610
Dana / Spicer steel cover – D3505
Fully crated – No extra charge
Standard Gear Ratios
3.54 / 3.73 / 4.10 / 4.30 / 4.56 / 4.88 / 5.13 / 5.38
Optional Pro Gear Ratios
4.10 / 4.56 / 4.88 / 5.38 / 6.17
Upgrades
Gun drilled axles – OPRS16
Pro Gear – OPRS22
Chrome moly yoke – OPRS18
HD cap kit – OPRF37
LPW aluminum cover – OPRS06
Strange aluminum cover – H1199P-BLK
