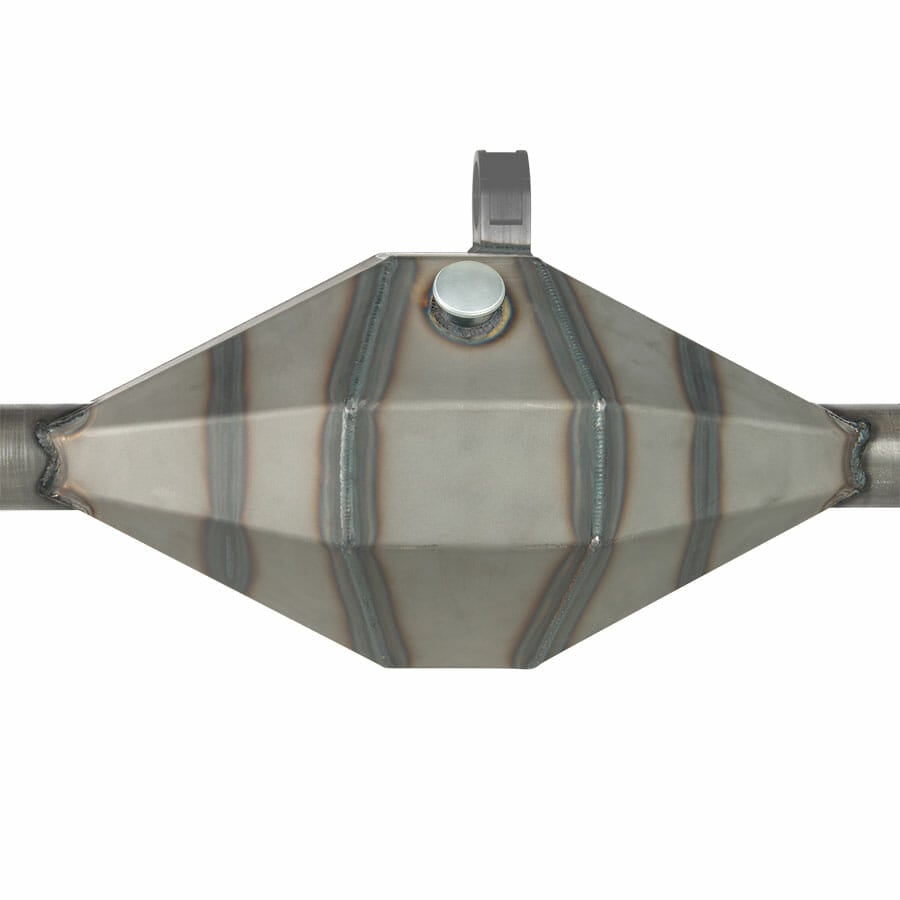

Application – 2005-2014 Mustang
DOMEX 100XF Material
• Extra high strength cold formed steel
• Utilized in top tier NASCAR housings
• Equivalent strength of chromoly
• Less prone to fatigue cracking than chromoly
• Highly ductile in the weld zone affected by heat
• Low carbon easily MIG or TIG welded
Features
• Triangulated Ridge Design
• Constructed From .125″ material
• Heavy Duty .375″ Face Plate
• Internal Radial Gusset Plates
• Tube locations Slotted & Welded For 5″
• Clearance Provided For Cases With HD Main Caps
• Housing Will Accept 9″, 9 1/2″, or 10″ Development Gear Sets
Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows for inspection of ring gear
Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness
Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity
2005-2014 Mustang Mounts
• Strange HD upper control arm mounts
• Lower control arm mounts with multiple hole locations
Choice of Housing Ends – H1138 / H1137
• Forged chrome moly
• Accept 3.150″ bearings
• Other Strange ends are available
Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity
Custom Widths Available At No Additional Charge
Note
Upper mount is moved forward .400″ and upward .400″
Aftermarket adjustable upper control arm must be used
Pinion offset is .125″ to passenger side
Information Required
Type of housing ends
Housing width
Options
Powder coat housing… H1199P-BLK
Install back brace…………. H1128N
