Application – Leaf Spring Vehicles
Description
S60 housing
Includes tubes, choice of leaf spring mounts & housing ends
Information Required
• Housing ends
• Housing width
• Pinion offset
• Leaf spring mounts
Features

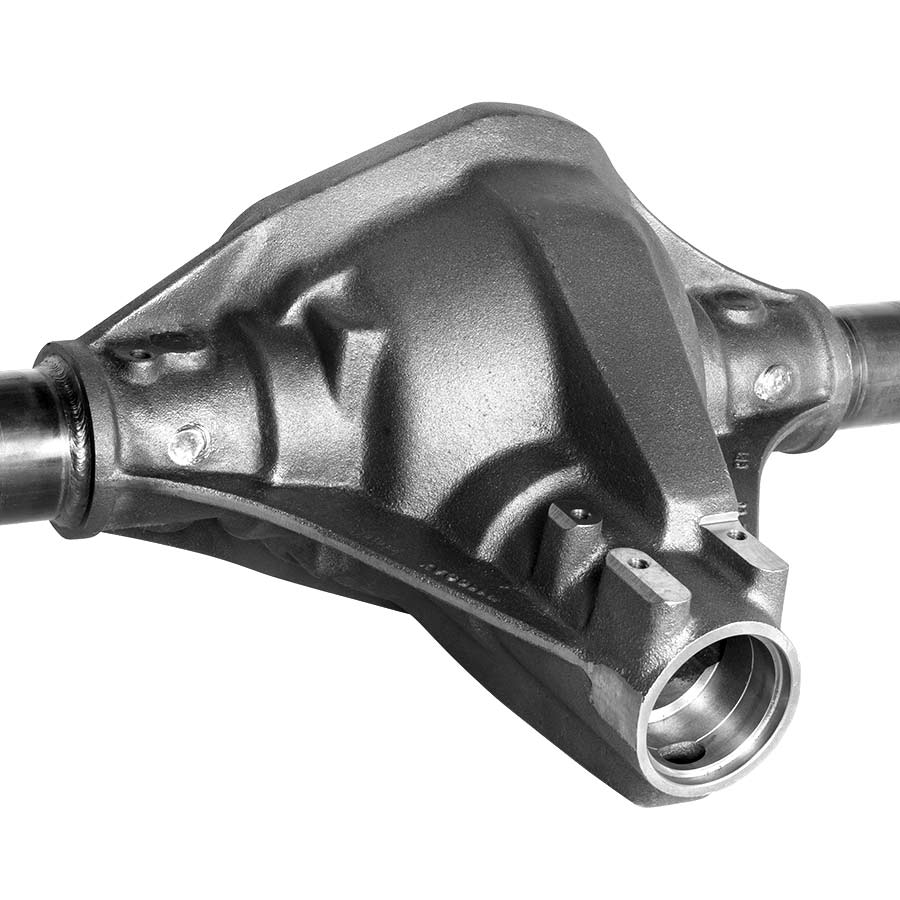

Nodular Iron Center – H1109A
– Pinion snubber mounting provision
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Accepts Dana 60 internal components *
* Uses different side bearing races
3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel
Choice Of Leaf Spring Mounts
– Single leaf, Multi-leaf, Early Chevy, & Mopar / Universal
– Same price for OEM or custom locations
Note
Mopar / Universal mounts can be “boxed” for an additional charge
Choice Of Housing Ends
– Mopar…. H1133 / H1147
– GM…….. H1143 / H1132
– Ford…… H1135 / H1137
– Other Strange housing ends are also available
Choice Of Housing Width
– Factory or made-to-order width
– OEM or custom pinion offset
– No additional charges
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
