Application
GM G-Body Vehicles
Description

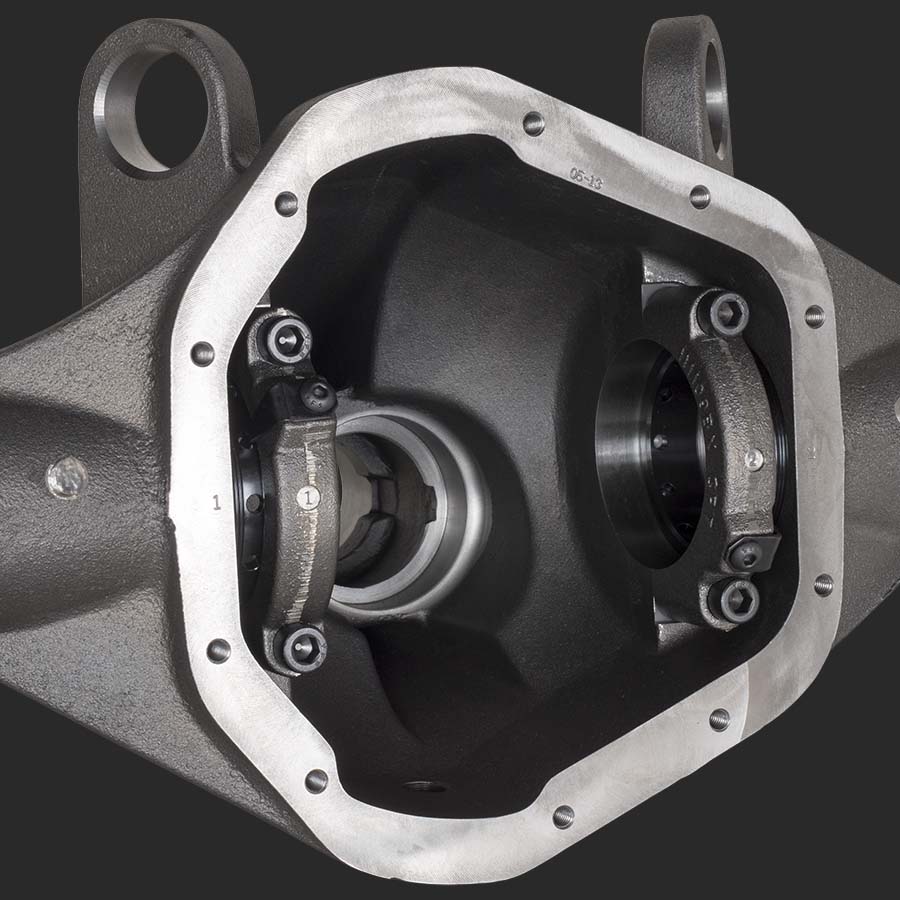

S60 G-Body housing
Includes G-Body coil spring seats, lower control arm mounts, & housing ends
Information Required
Year, make, & model
Type of housing ends
Stock housing width or custom
Features
Nodular Iron Center – H1108A
– G-Body upper control arm mounts
– Raised 3/8″ to improve traction
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Accepts Dana 60 internal components *
* Uses different side bearing races
Coil Spring & Lower Control Arm Mounts
– Strange heavy duty
– Multiple lower control arm mounting holes
– Provides wide range of traction adjustment
3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel
Choice Of Housing Ends – H1143 / H1137
– Forged chrome moly
– Accepts 3.150″ tapered or ball style bearings
– Other Strange housing ends are also available
Choice Of Housing Width
– Factory or custom width
– No additional charge
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
