Application – GM A-Body Vehicles
Description

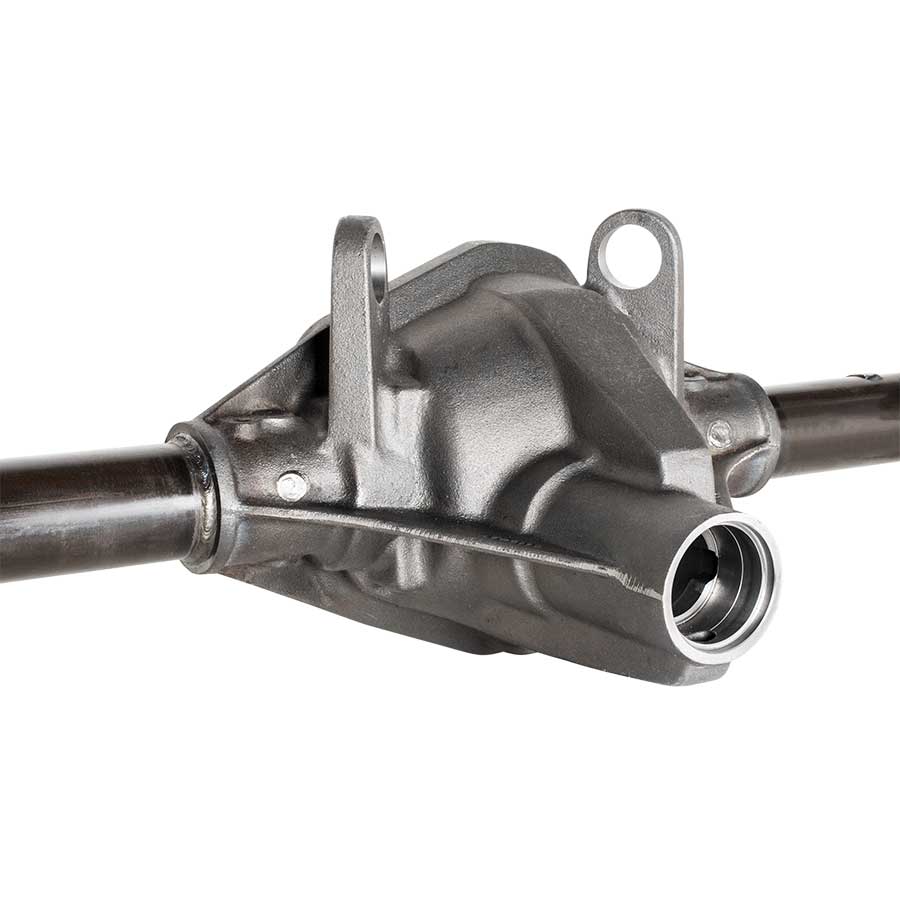

S60 A-Body housing
Includes A-Body coil spring seats, lower control arm mounts, & housing ends
Information Required
Year, make, & model
Type of housing ends
Stock housing width or custom
Features

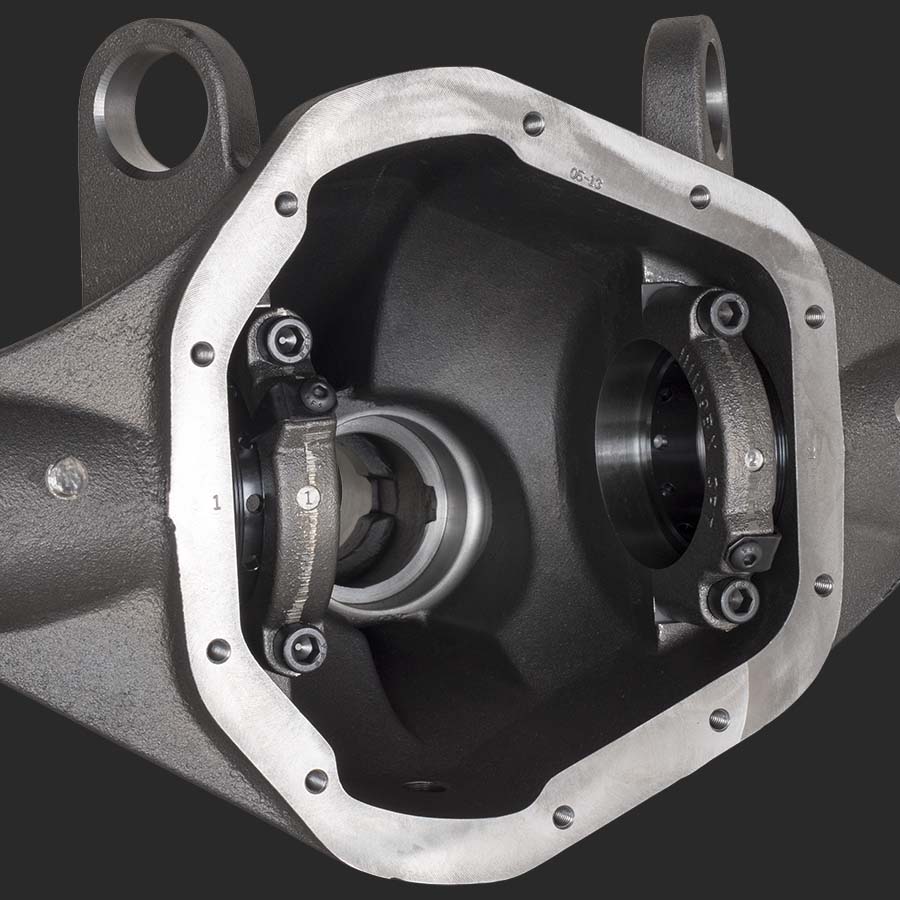

Nodular Iron Center – H1107A
– A-Body upper control arm mounts
– Raised 15/16″ to improve traction

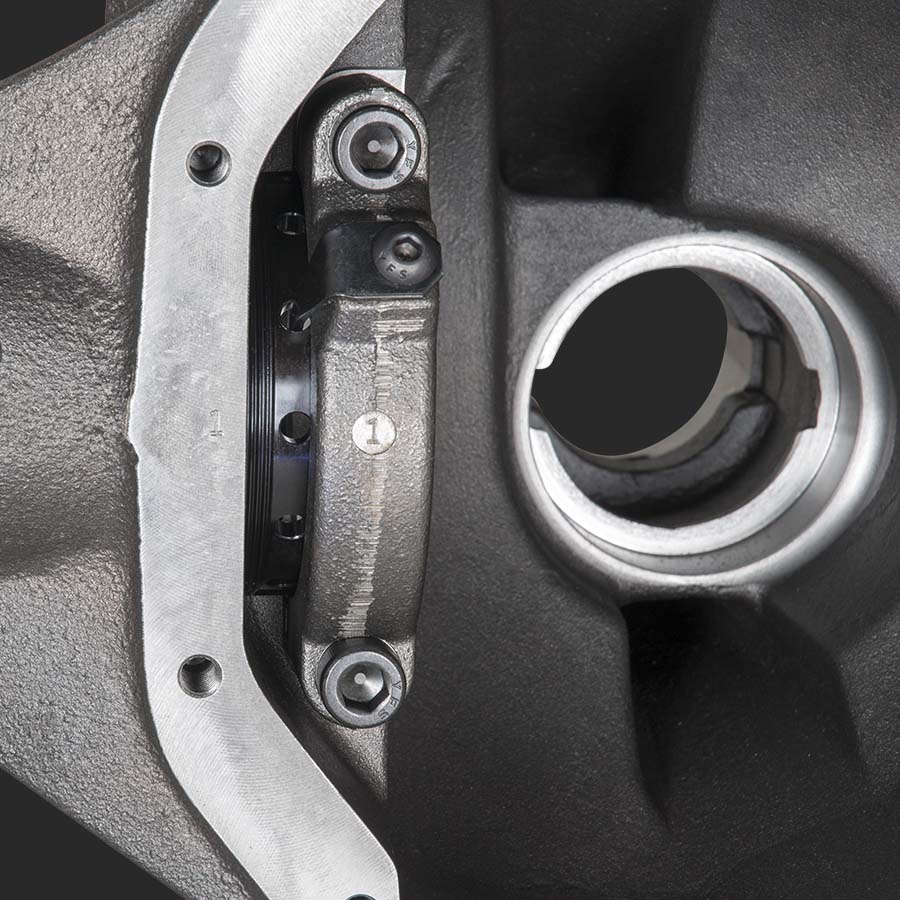

– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Accepts Dana 60 internal components *
* Uses different side bearing races

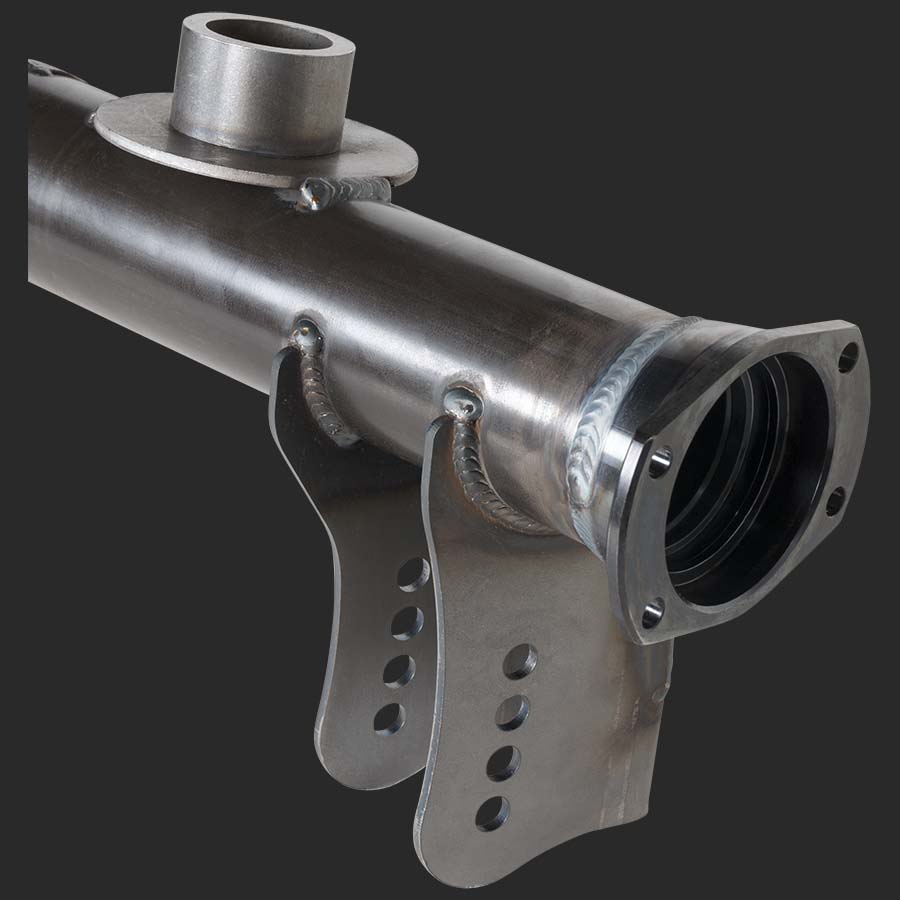

Coil Spring & Lower Control Arm Mounts
– Strange heavy duty
– Multiple lower control arm mounting holes
– Provides wide range of traction adjustment
3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel
Choice Of Housing Ends – H1143 / H1137
– Forged chrome moly
– Accepts 3.150″ tapered or ball style bearings
– Other Strange housing ends are also available
Choice Of Housing Width
– Factory or custom width
– No additional charge
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
