S60 GM A-Body Housing With Choice Of Ends - No Mounts

S60 A-Body housing
Tubed with choice of housing ends – No mounts

Part Number: H60GAE
GM A-Body Vehicles

Note
Ordering a housing in this state is not recommended
Great care must be taken when performing any further welding
Housing end alignment should be re-checked once completed

Information Required
Housing ends
Housing width

Features
Nodular Iron Center – H1107A
– A-Body upper control arm mounts
– Raised 15/16″ to improve traction
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Accepts Dana 60 internal components *

* Uses different side bearing races

3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel

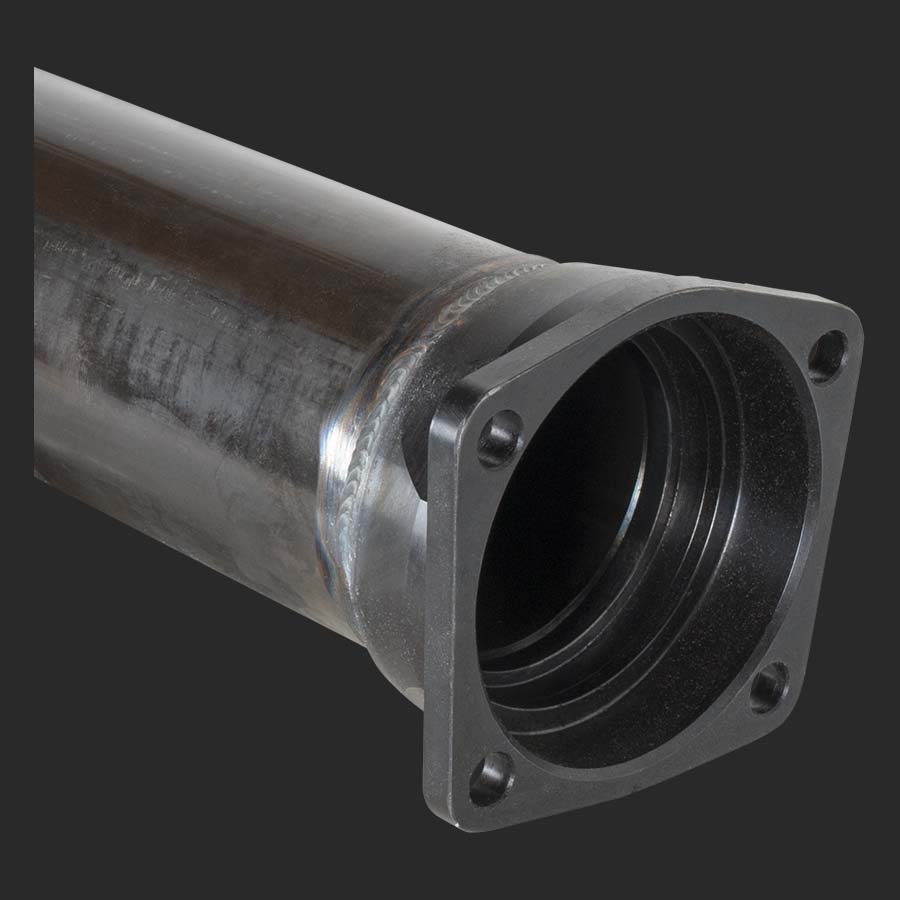

Choice Of Housing Ends – H1143 / H1132 / H1137
– Forged chrome moly
– Accepts 3.150″ tapered or ball style bearings
– Other Strange housing ends are also available

Choice Of Housing Width
– Factory or custom width
– No additional charge

Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
