Application – S60 housing fabrication
Description
S60 housing
Tubed with choice of housing ends – No Mounts
Note
Ordering a housing in this state is not recommended
Great care must be taken when performing any further welding
Housing end alignment should be re-checked once completed
Information Required
Type of housing ends
Housing width
Pinion offset
Features
Nodular Iron Center – H1109A
– Pinion snubber mounting provision
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Accepts Dana 60 internal components *
* Uses different side bearing races
3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel

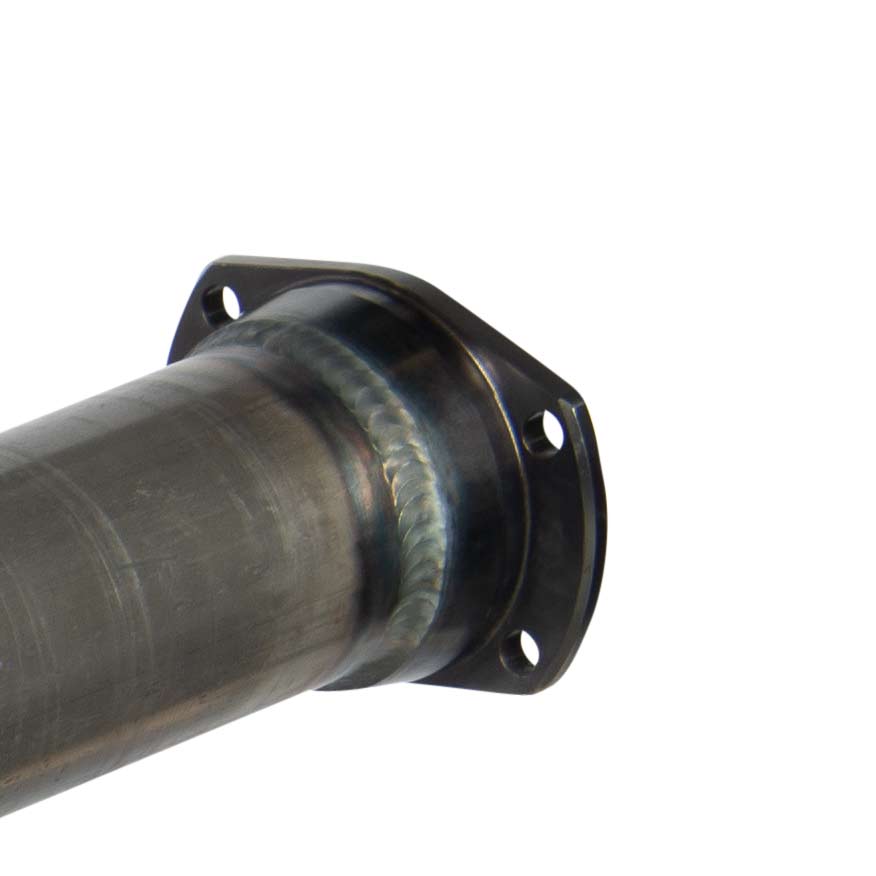

Choice Of Housing Ends
– Mopar… H1133 / H1147
– GM…….. H1143 / H1132
– Ford…… H1135 / H1137
– Other Strange housing ends are also available
Choice Of Housing Width
– Factory or made-to-order width
– OEM or custom pinion offset
– No additional charges
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
