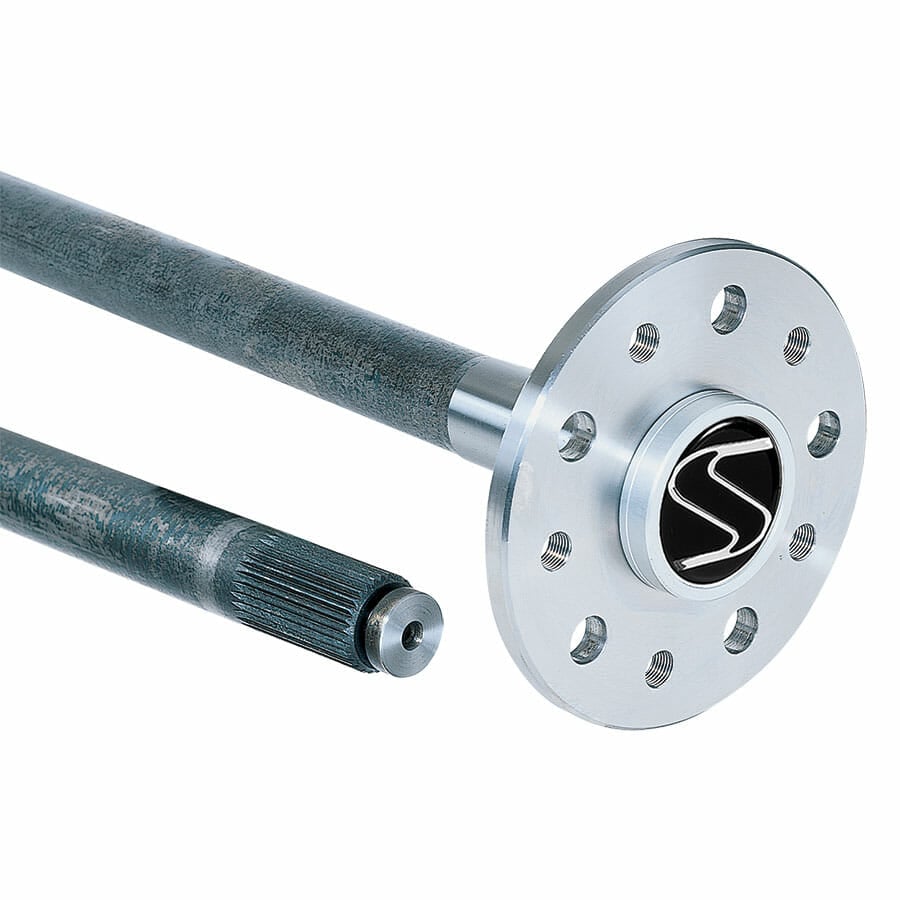

Alloy C-Clip Axles
Sold as pair
Alloy axle packages are optimized for street & track use
See Hy-Tuf axles for maximum torsional strength for all out Drag Racing
Fits factory width 70-72 Camaro or 68-72 Chevelle with OEM housing ends
For 67-69 Camaro or 64-67 Chevelle – See P3020
Strange C-Clip Axles
– Updated material and machining technology to replace old and fatigued OEM axles
– Replaces axles damaged by bearing failure
– Reduces end play caused by worn clip grooves
– Perfect addition to a rebuilt rear end
Alloy Axles
– Forged from modified 1550 premium steel
– Majority of machining performed before heat treat to provide consistent hardness
– Induction hardened to Rc 62 to increase torsional strength while remaining ductile
– Finish machined after heat treat to ensure accuracy
– 30 spline
– 30.06″ in length (Measured from outside face of flange to axle tip)
– Dual 4 3/4″ bolt circles for either OEM 7/16″ press-in studs or 1/2″-20 screw-in studs
– Designed to accept OEM replacement bearings, seals, and clips
– Forged in the USA
– Designed and machined by Strange Engineering
