Ford 9″ Installation Kit For N1922 or N2322 Tapered Bearing Supports Using 28 Spline Pinion Gear

Application
Strange tapered bearing pinion supports – N1922 / N2322
Installing 28 spline pinion gear

For 35 Spline Pinion – See R5238WR

Gasket is not included

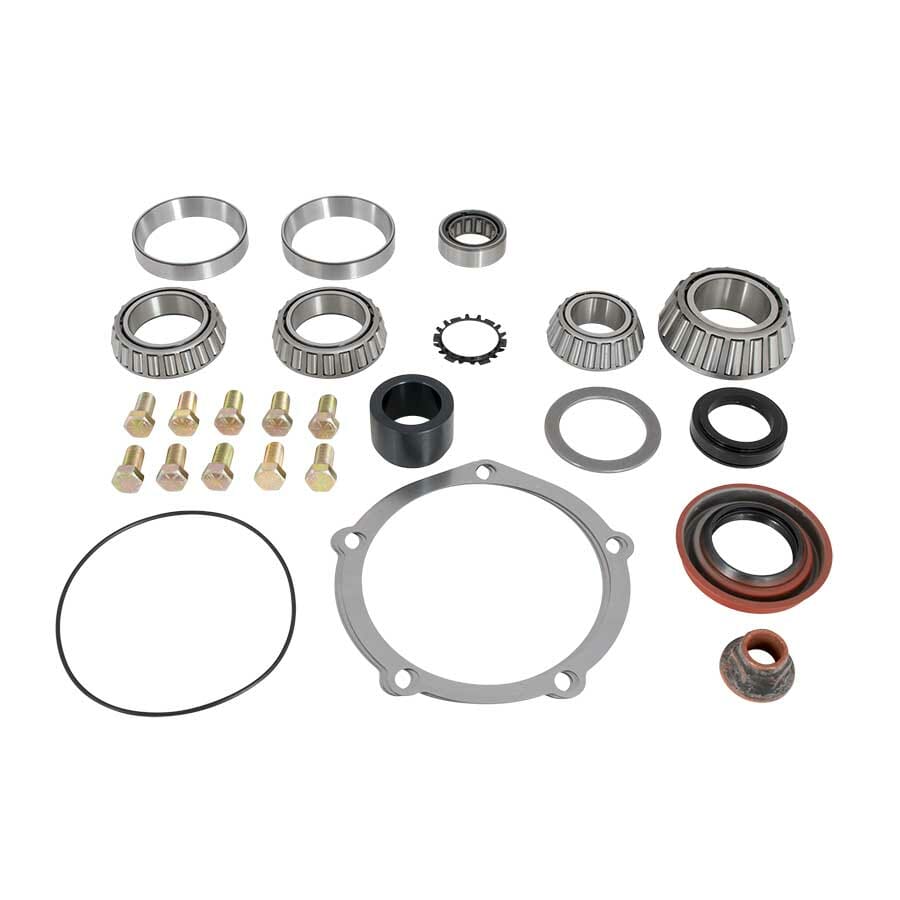

Kit Includes

Front and rear pinion bearings & races – N1930 / N1931 / N1938 / N1939
Side bearings and races – D1586, D1588, D1590, or D1592
Tail bearing – N1940 or N1943
Tail bearing retainer – N1941 (Except HD Pro)
Pinion seal – N1960
Pinion support o-ring – N1958A
Flanged pinion nut – N1922A
Solid adjustable pinion preload spacer – N1919
Small pinion adapter sleeve – N1926A
Rear bearing spacer washer – N1926D
Pinion depth shim kit – N1962
7/16″-20 ring gear bolts – N1965, N1967, N1968, or D1565RK

Information Required

Case Bore Size
2.891″ / 3.062″ / 3.250″ / 3.812″

Specify if using HD Pro Aluminum case

Spool or Differential

For Differential
Clutch Type or All Others

For Strange Spool
Steel or Aluminum

For Other Spools
Choose part number of ring gear bolts
