Strange HD Pro Completion Kit For Ball Bearing Pinion Support Installing 28 Spline Pinion Gear

Application
For Strange HD Pro case kits – P3200BB / P3203BB / P3207BB
Installing 28 spline pinion gear

For 35 Spline Pinion – See R3200LB

Description
Supplies remainder of installation components
Less carrier, gear set, and yoke or coupler

Notes
Support race, o-ring, & tail bearing are not included
These parts are supplied in case kits

If Performing a Gear Change – See R5237B / R5237BR

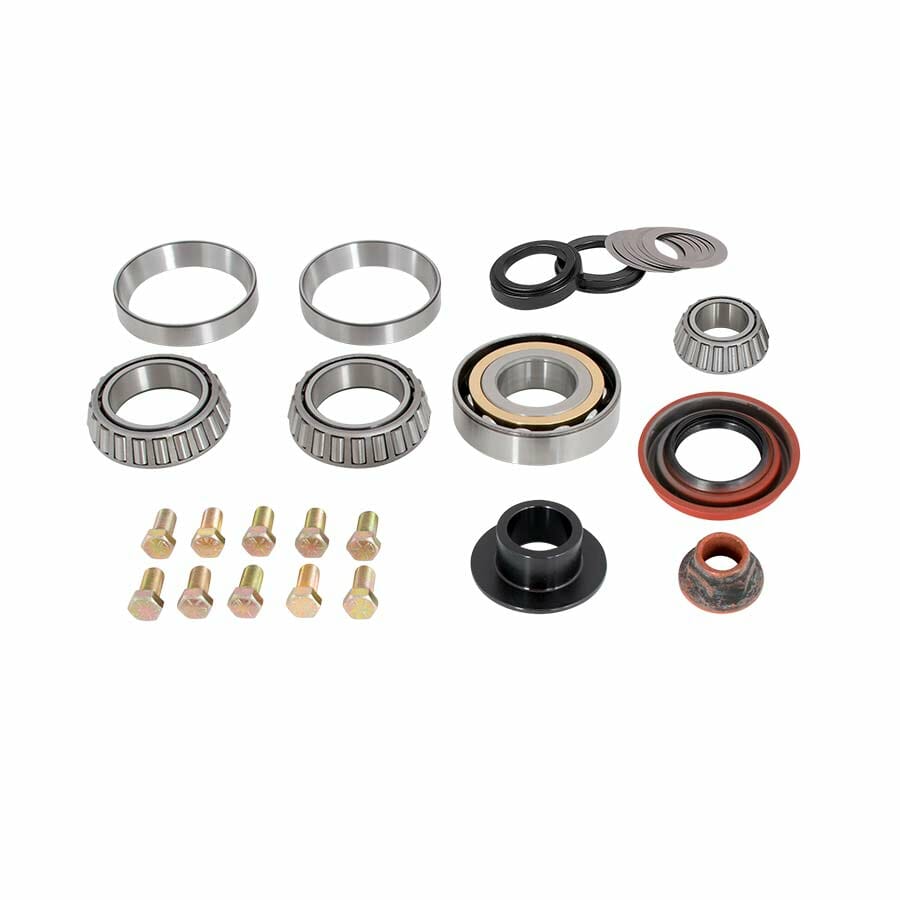

Kit Includes

Tapered front pinion bearing – N1930
Rear angular contact ball bearing assembly – N1920B
Side bearings and races – D1588, D1590, or D1592
Pinion seal – N1960L
Flanged pinion nut – N1922A
Adjustable pinion preload spacer – N1920HK
Adapter / spacer sleeve – N1920G
7/16″-20 ring gear bolts – N1965, N1967, N1968, or D1565RK

Information Required

Case Bore Size
3.062″ / 3.250″ / 3.812″

Spool or Differential

Note
Ball bearing supports are not designed for street use

For Differential
Clutch Type or All Others

For Strange Spool
Steel or Aluminum

For Other Spools
Choose part number of ring gear bolts
