3.812″ Billet Case and Support Package With Tapered Bearing Pinion Support For 10″ Development 35 Spline Pro Gears

Applications
Pro Mod
Alcohol Funny Car
Top Dragster
Drag Radial
Outlaw 632
Radial vs The World
Radical high horsepower vehicles

Additional Parts Required
Strange HD 40 spline spool
10″ Pro gear set
35 spline yoke or coupler
Gasket

This Case & 10″ Gear Set May Not Fit Your Housing

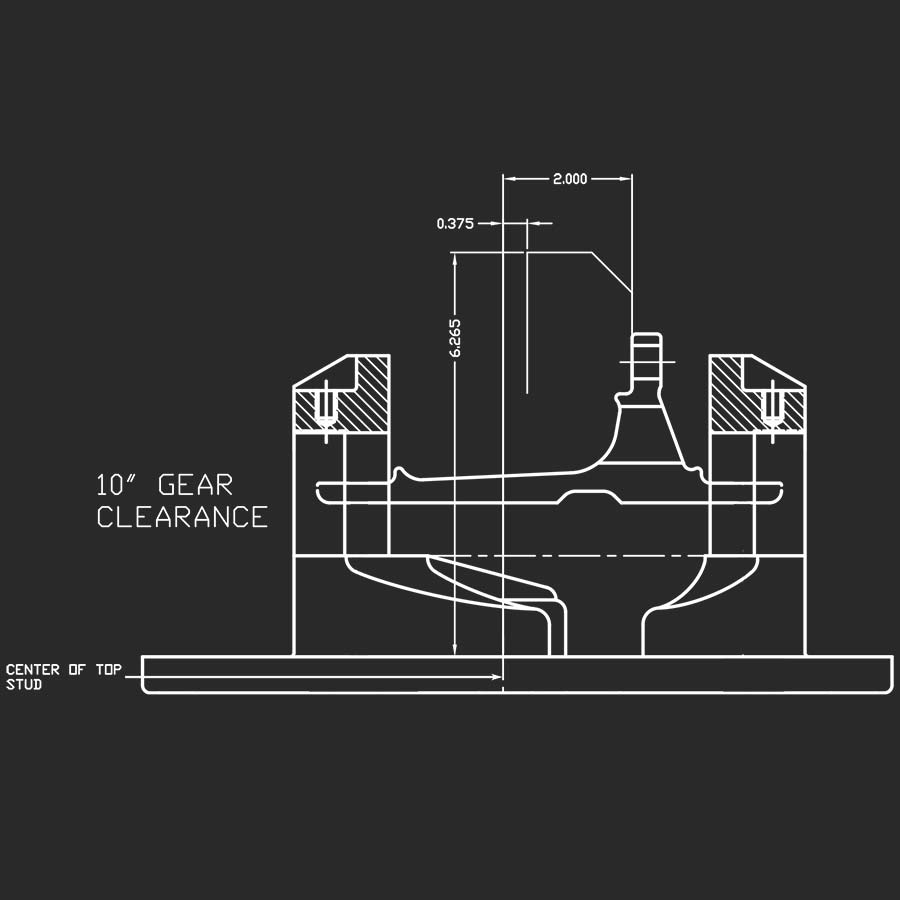

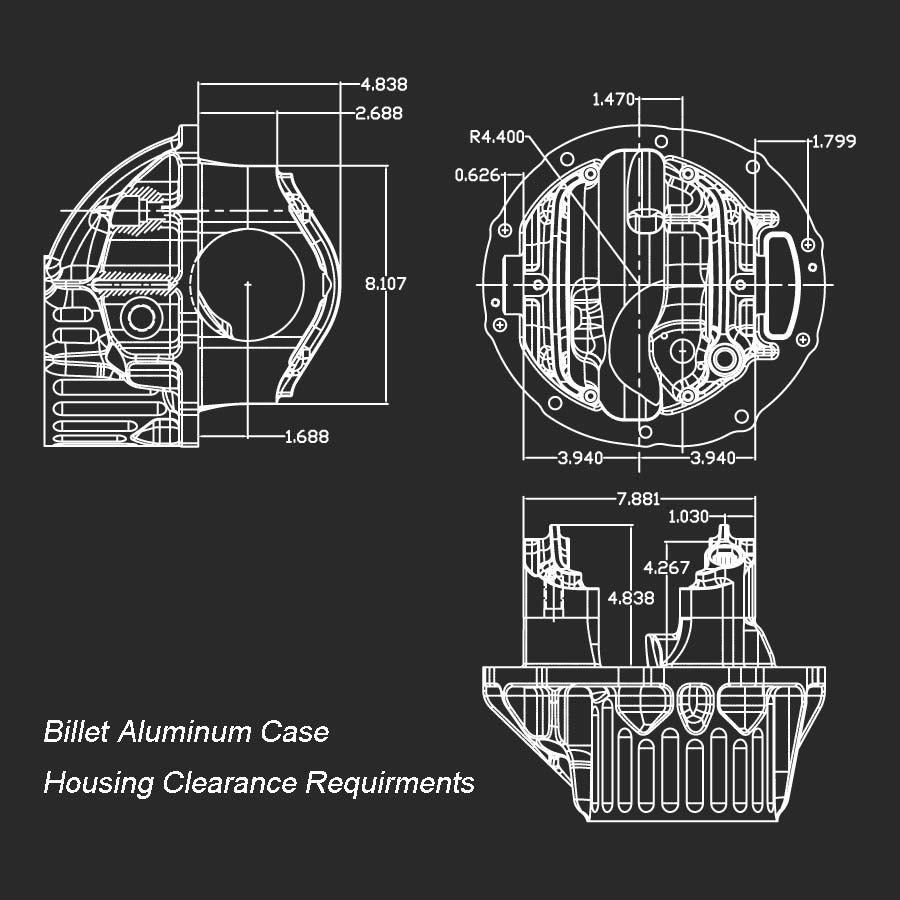

Please refer to clearance diagrams

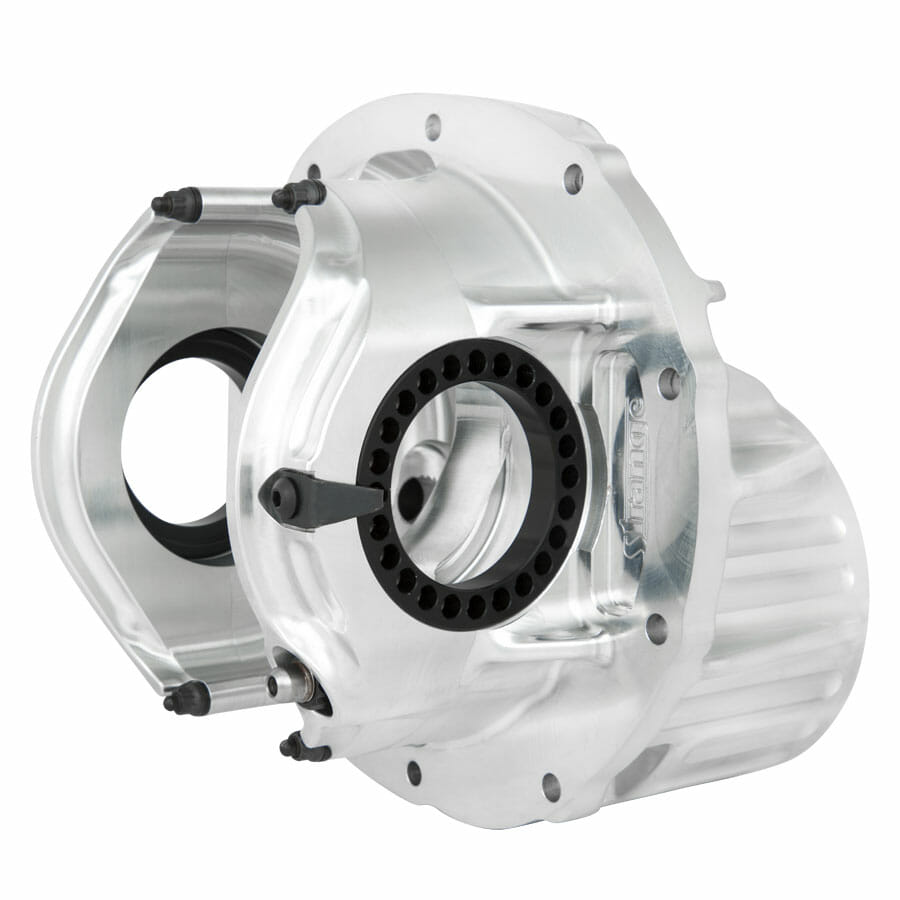

Package Includes
N1912PM

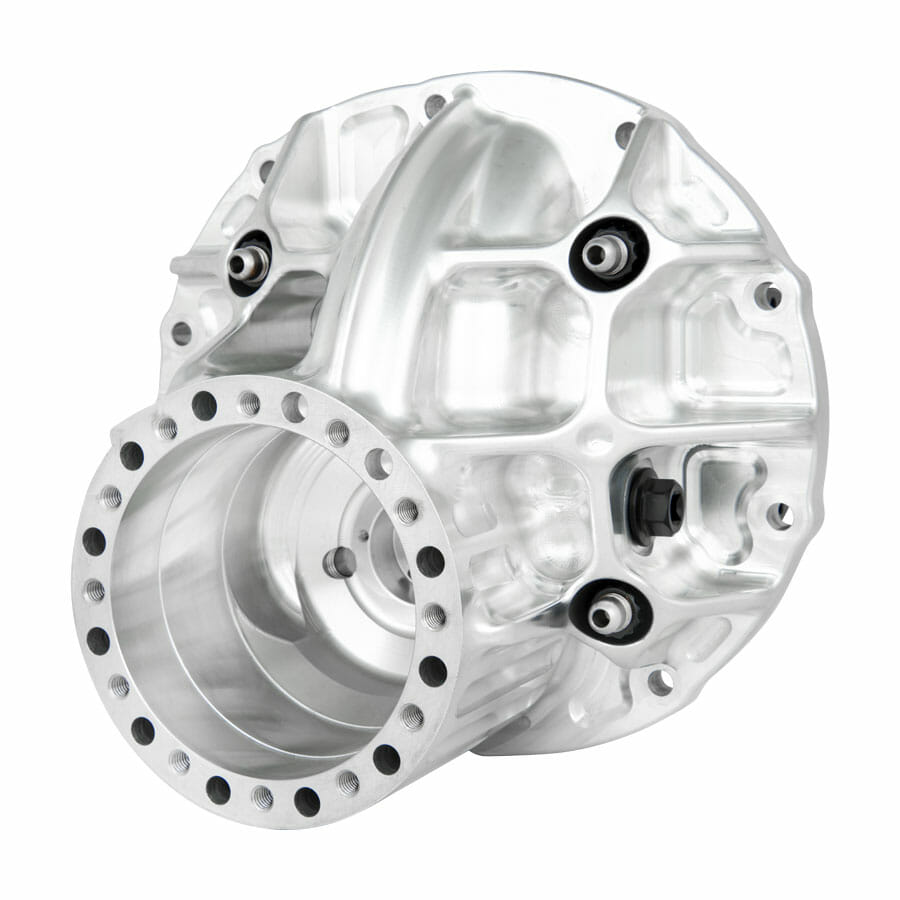

• 7075-T73 Aerospace aluminum case
• Vibratory stressed relieved
• Solution heat treated
• Type II anodizing
• .650″ thick mounting flange
•Large oil scavenging channel
• Raised cross rib design
• Wrap around designed main caps
• AISI 8740 steel bullet end main studs
• Massive wall sections in tail bearing area
• Extensive lightening
• Designed & machined by Strange
• Material made in the USA

N1950AC
• 2024-T351 billet aluminum support
• For tapered pinion bearings
• Designed for 10″ gear sets only
• Milled for maximum weight reduction
• Clear anodized

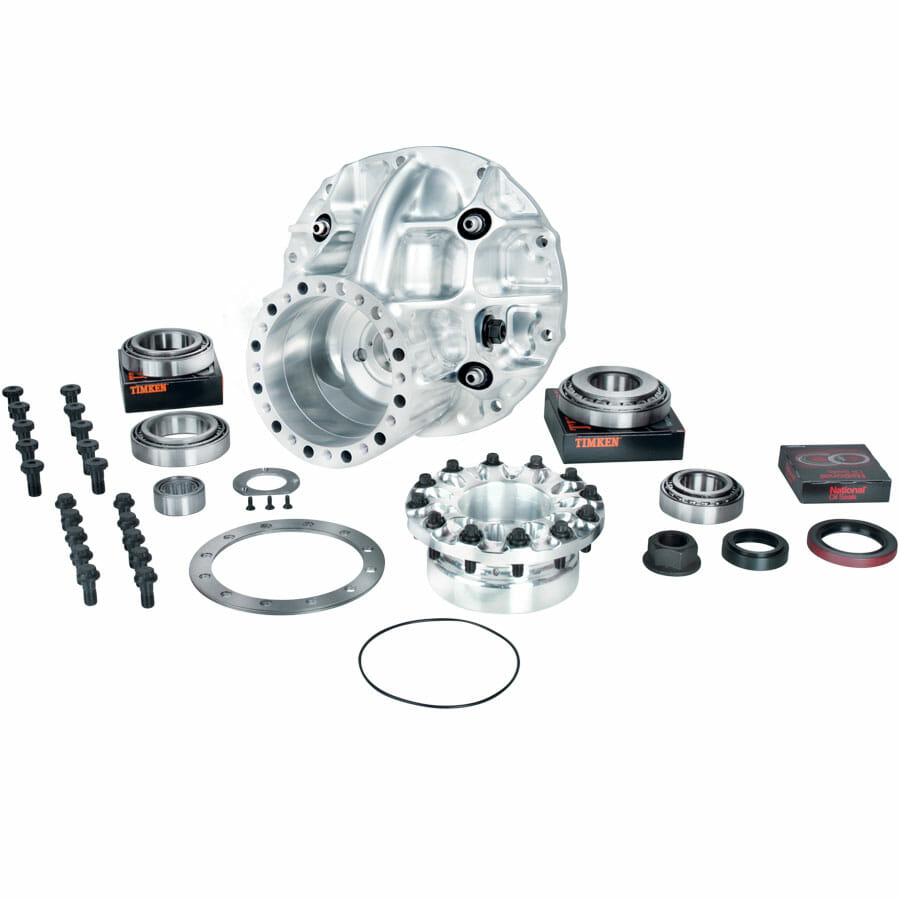

Remaining Components
• Timken® pinion bearings & races
• Rear bearing spacer
• One piece solid preload spacer – Machine to fit
• Pinion depth shim kit
• ARP support bolts and O-ring
• Pinion seal and flanged nut
• Oversize tail bearing with retainer plate and screws
• Timken® side bearings and races
• ARP 7/16″ & 1/2″ ring gear bolts
