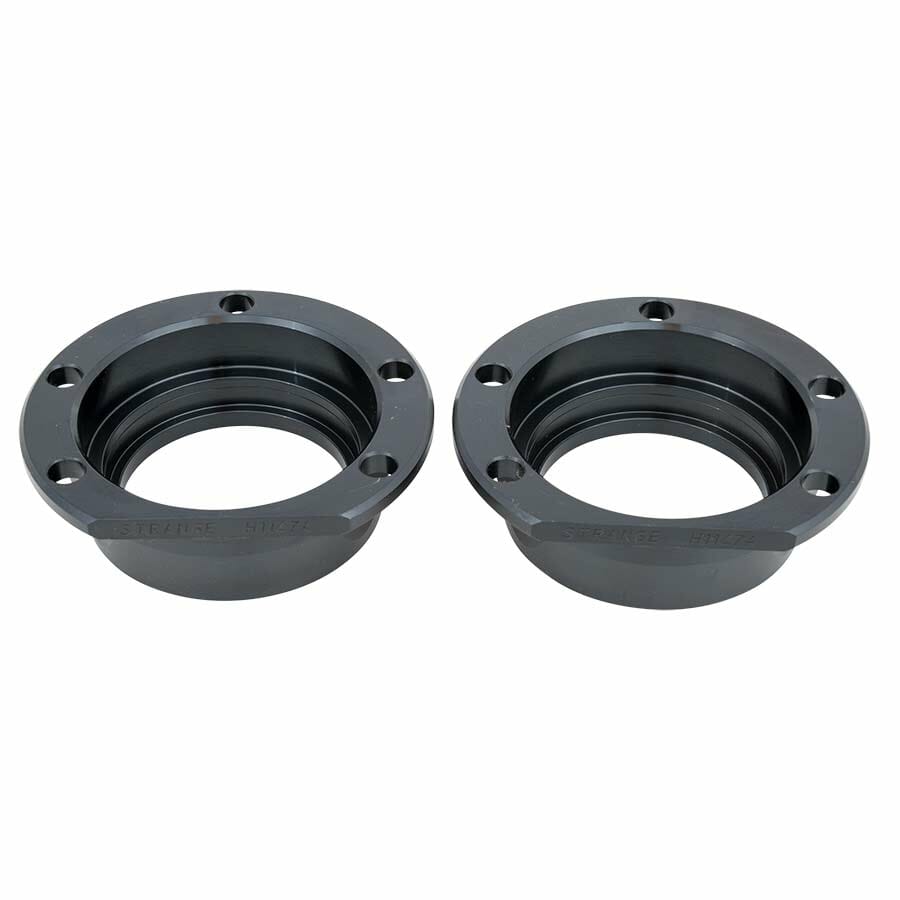

Housing Ends Mopar – Special 3.150″ Bore

Part Number: H1147

Description
Strange Housing Ends
Sold as pair

Requires
O-ring style ball bearings
or
Outer seal unit bearings

Drum Brake Applications
Backing plate hole needs to be machined to 3.155″

Features
• 8620 forged chrome moly steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Black oxide finish
• Designed & machined by Strange
• Material forged in the USA

Dimensions
– 1.300″ total width
– 0.281″ wide flange

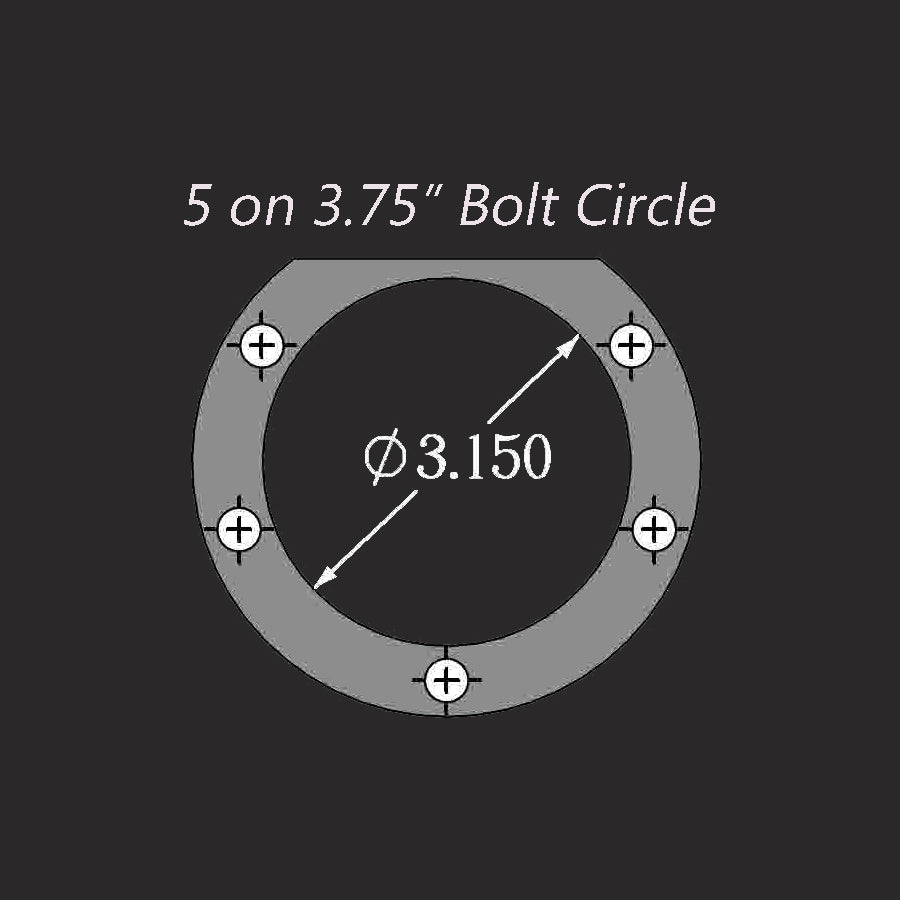

– 3.152″ ID x .680″ deep bearing bore
– 3.250″ OD / 2.515″ ID at tube end

Typical Axle Offset
2.300″ – A-Body Drum
2.600″ – B-Body Drum
2.663″ – Strange Disc
