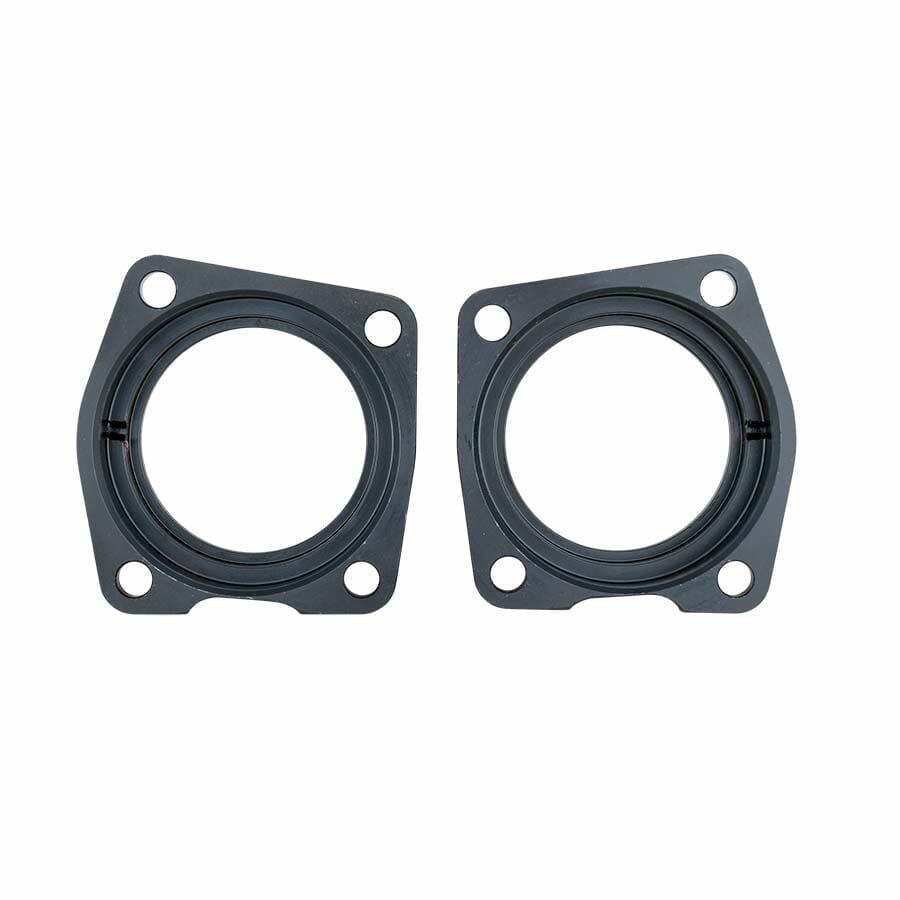

Housing Ends Small GM – For 3.150″ Bearing Clearance For 4 Channel ABS Sensor

Part Number: H1144

Application
Housing Using 98-02 F-Body Brakes
Clearance for 4 channel sensor

Description
Strange Housing Ends
Sold as pair

Requires
O-ring style ball bearings
or
Outer seal unit bearings

Features
• 8620 forged chrome moly steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Black oxide finish
• Designed & machined by Strange
• Material forged in the USA

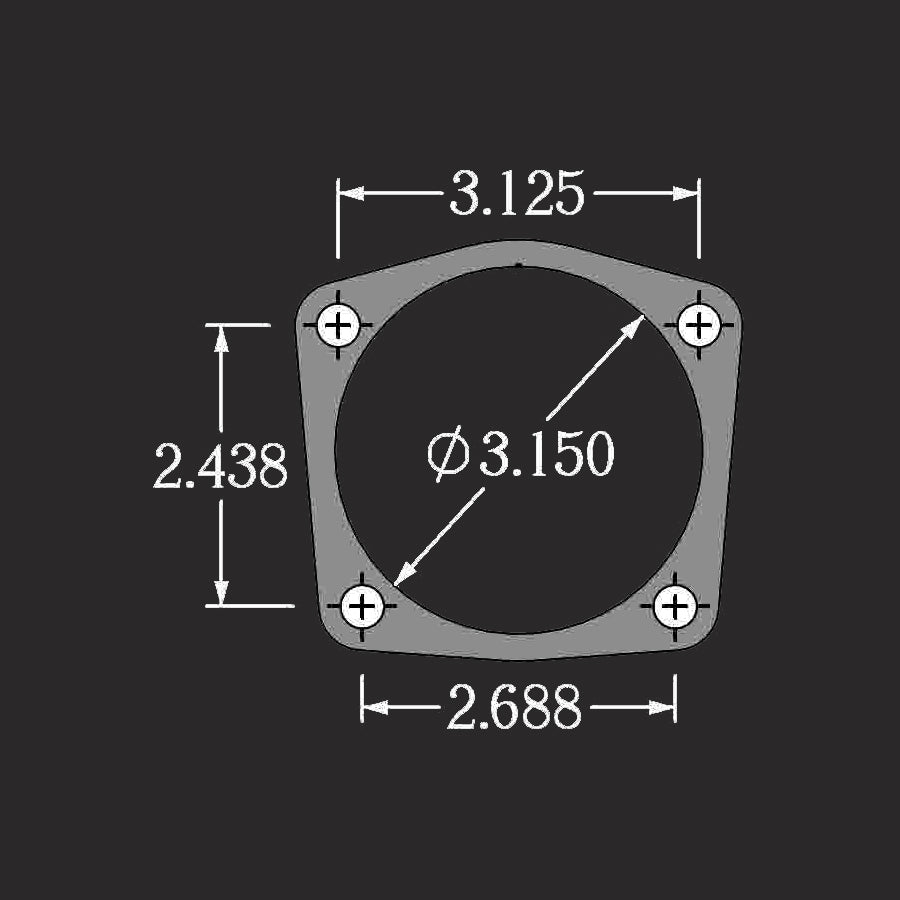

Dimensions
– 1.300″ total width
– 0.281″ wide flange
– 3.152″ ID x .680″ deep bearing bore
– 3.250″ OD / 2.500″ ID at tube end

Typical Axle Offset
2.740″ – GM 1998-2002 F-Body disc
