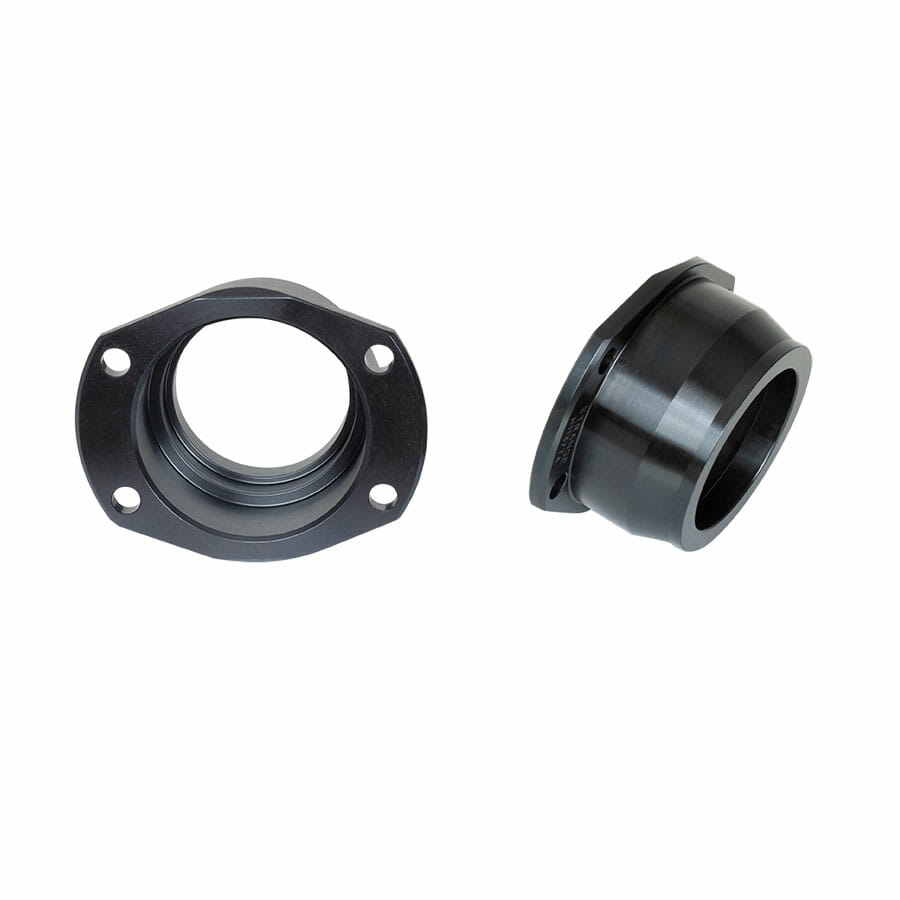

Late Big Ford Truck Housing Ends For P3502T & P3504T Axle Packages

Part Number: H1137T

Late Big Ford Truck Housing Ends
• Specifically designed for Strange truck axles
• Accepts unit axle bearing, locking collar & seal

Sold as Pair

Features
• Billet 1026 steel
• Butt weld design
• For 3″ or 3 1/4″ O.D. tubing
• Black oxide finish
• Designed & machined by Strange
• Material made in the USA

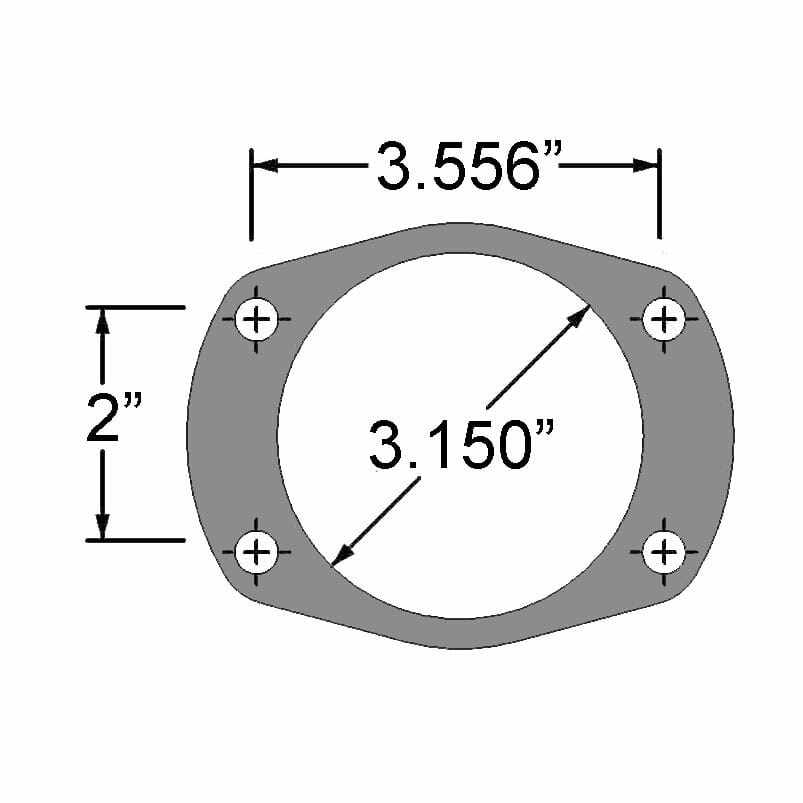

Dimensions
• 2.00″ total width
• 0.281″ wide flange
• 3.150″ I.D. x 1.170″ deep bearing bore
• 3.250″ O.D. / 2.530″ I.D. at tube end

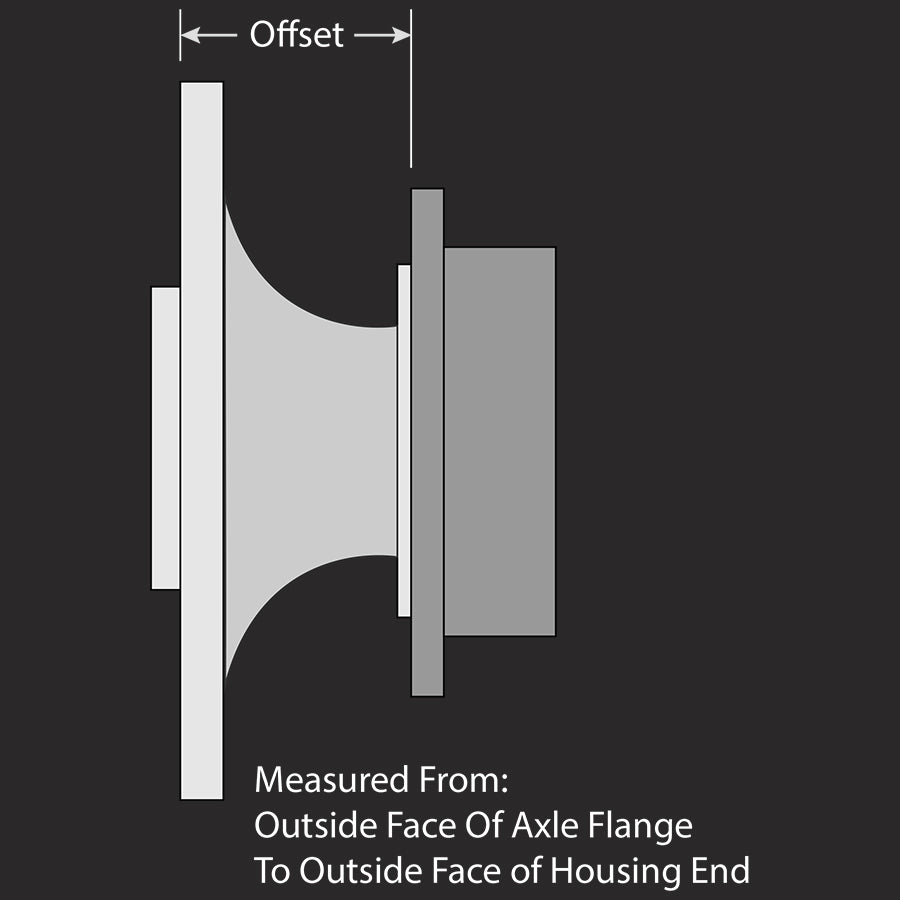

Typical Axle Offset (F) – 2.500″
