Designed Specifically For Drag Racing

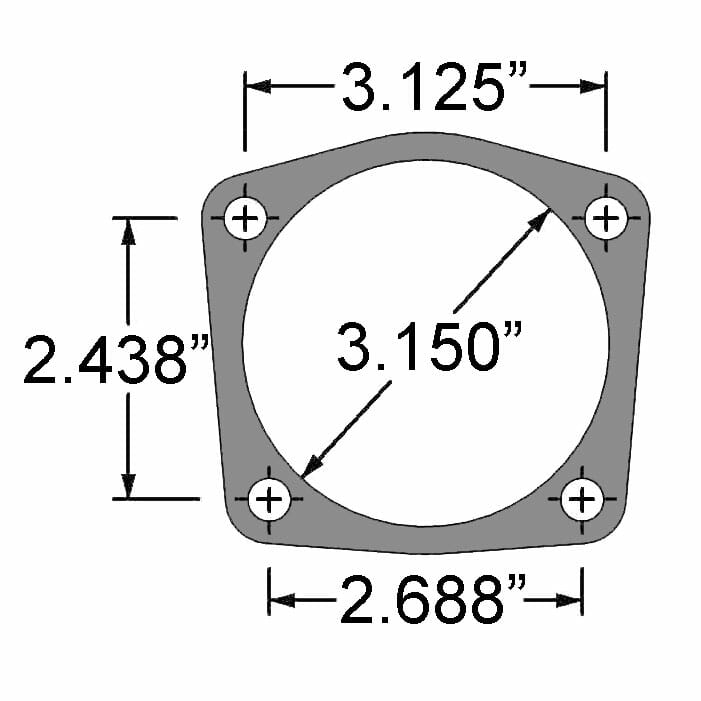

For Strange 3.150″ Small GM Housing Ends – H1143
Requires
• Strange housing ends
• Ball style axle bearings
• Caliper mount relief isn’t correct for tapered bearings
• 2.832″ brake offset
Compatibility Issues
Moser #7900 Housing Ends
Brake kit will not fit these ends
Moser #7900FM Housing Ends
Will fit these ends using spacers – Sold Separately
• For ball bearing – B1105GB
• For tapered bearing – B1105G
One Piece Forged Steel Rotors – B2792 / B2793
• Directional slots increase air flow and reduce weight
• One piece design eliminates bolts & safety wire
• Hat section drilled & milled to further reduce weight
• 4 1/2″, 4 3/4″ & 5″ Uni-Lug bolt circles for both 1/2″ & 5/8″ studs
Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise
DTC-30 Semi Metallic Brake Pads – B5010
• Provides the best starting-line cold holding power
• Recommended for vehicles going 150 MPH or less in the 1/4 mile
Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance
Housing End Stud Kit – H1133STKIT
• Provides additional components not supplied in most aftermarket kits
Need More Wheel Clearance?
Evolution 4 Low Profile Caliper Option – OPRB10
Want Billet Calipers?
Evolution 4 Billet Caliper Option – OPRB07
Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting
Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
