F-3R-112 (F-1X-12) ProCharger (Satin)

F-3 SERIES SUPERCHARGERS – 2000 TO 3000+ HP

The first centrifugal supercharger to power a door-slammer over 200 mph and into the sixes, F-3 ProChargers are the centrifugal superchargers of choice among heads-up racers across the continent. Featuring a large, 12- inch volute and provides vastly higher airflow than the F-1 and F-2 models. With multiple trims available, the F-3 can support up to 3,000+ HP.

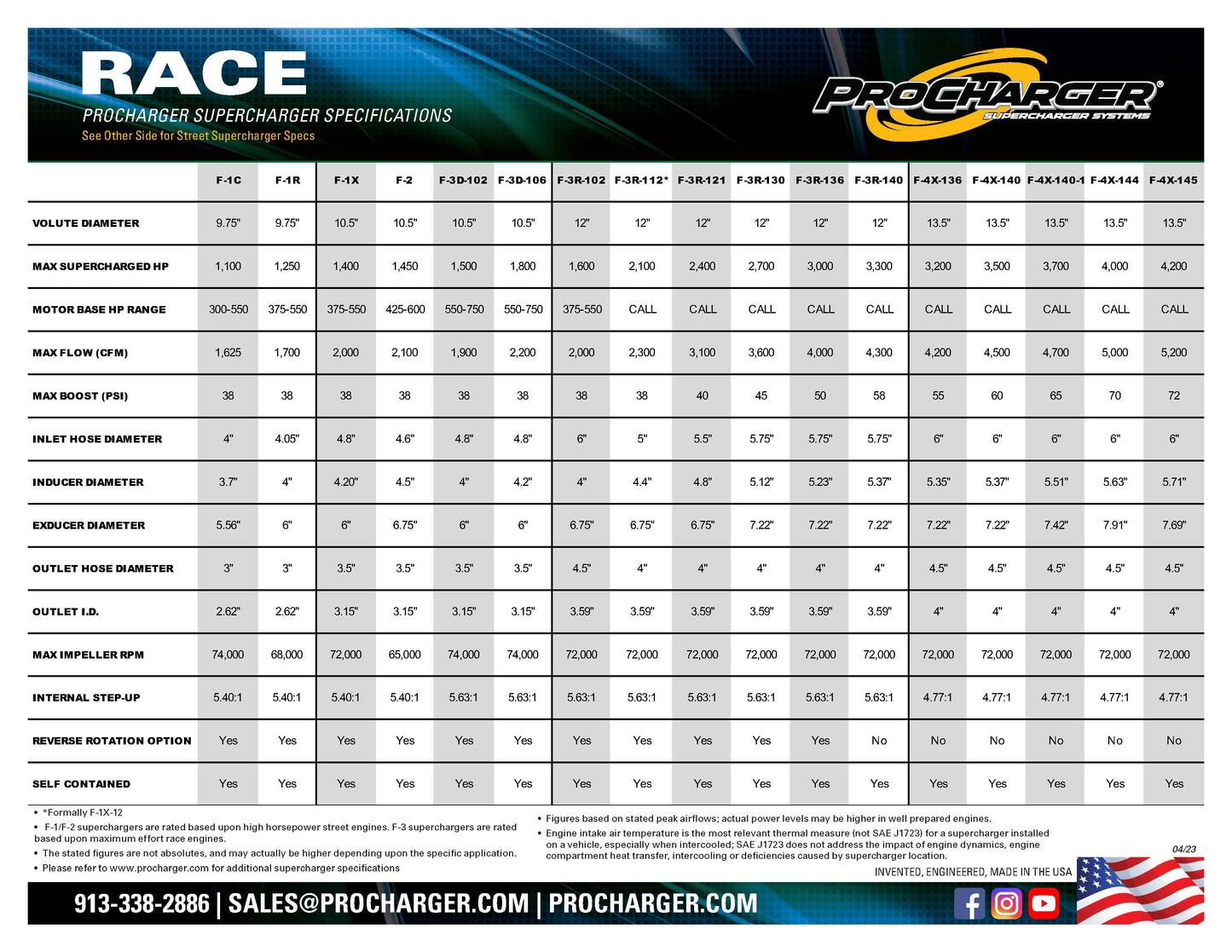

ProCharger F-3R-112

Formally F-1X-12

Volume Diameter 12"
Maximum Supercharged HP Rating: 2.100
Maximum Airflow: 2,300 cfm
Maximum Boost: 38 psi
Maximum Impeller RPM: 72,000
Internal Step-up Ratio: 5.63:1
