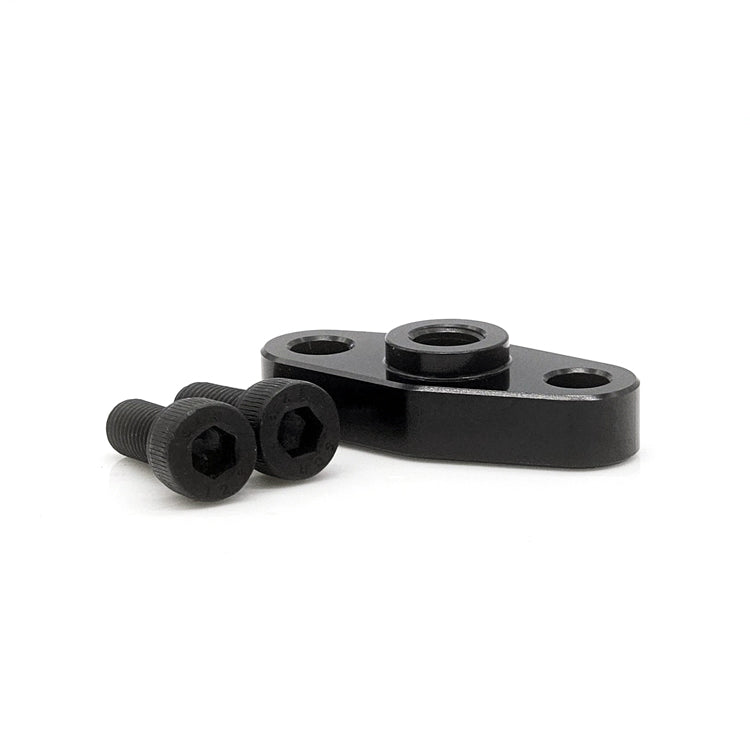

Oil Feed Flange 1/8" FNPT with O-Ring Style Seating Surface (1.500" Bolt Circle / 25/64" Thick)

The Ace Race Parts brand of Oil Feed Flanges are offered in a wide range of configurations. This particular Oil Drain Flange features an integrated 1/8" Female NPT Thread Outlet, and flange thickness of 25/64", and an O-Ring Style Seating Surface to ensure a leak-free connection at all times. Our oil drain flanges are precision CNC machined from solid 6061-T6 Aluminum billet and features a black hard anodized finish that will stand up to the harshest conditions.

FEATURES

• 1/8" Female NPT Thread Outlet
• O-Ring Style Seating Surface
• Round Bolt Holes with a 1.500" Bolt Circle
• 25/64" Flange Thickness
• Precision CNC Machined
• 6061-T6 Aluminum, Black Hard Anodized Finish
• Two M8 x 1.25 Button Head Cap Screws

COMPATIBILITY

• Garrett: GT47, GT50, GT55
