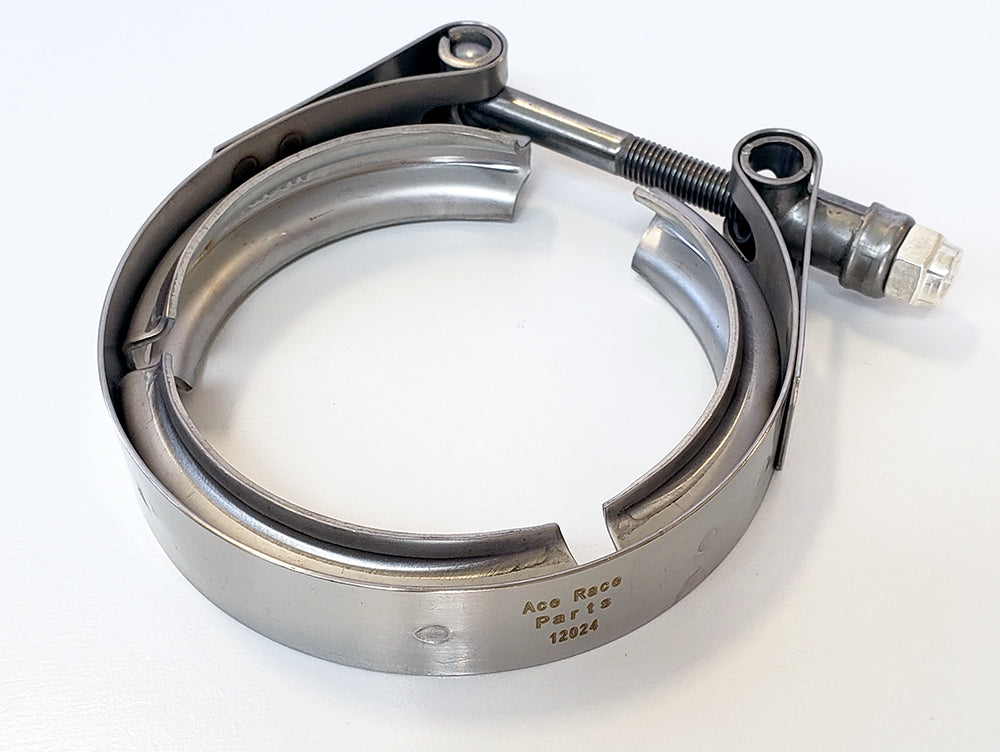

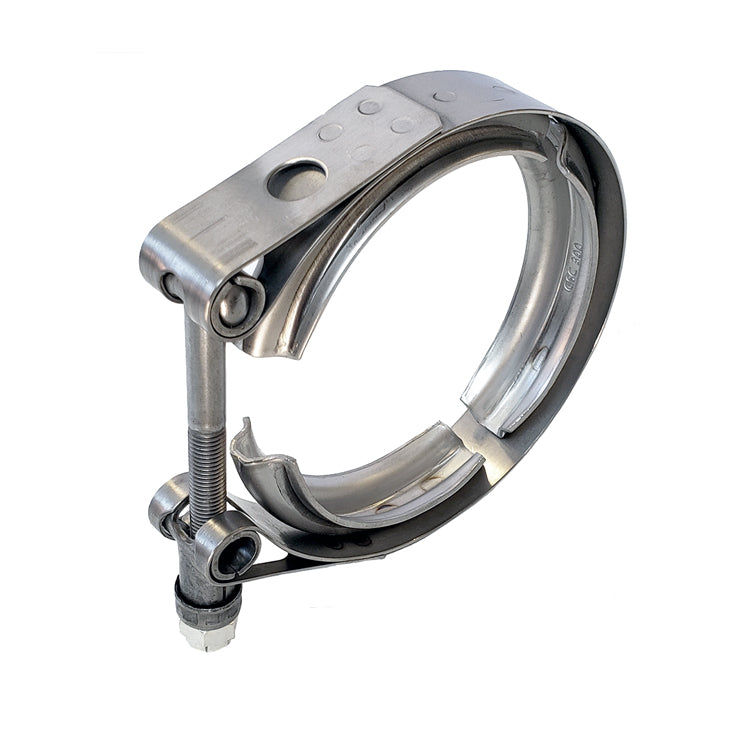

2.250" V-Band Clamp (for 2.980" OD Aluminum and Stainless Flanges) - 304 Stainless

V-Band Clamp Sizing Information: Our V-Band Clamp sizing is in reference to the intended matching tube size diameter, not the clamping range of the clamp itself. This specific V-Band Clamp is intended to be used with 2.250" ID V-Band Flanges (matching tube size: 2.250" OD) and will accept V-Band Flanges with an overall OD of 2.980".

If you need assistance in finding a matching V-Band Clamp for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange.

This V-Band Clamp is a suitable replacement for, or compatible with, the following SKU:

• 12054 — 2.250" "Male + O-Ring" V-Band Flange 6061 Aluminum

• 12064 — 2.250" "Female" V-Band Flange 6061 Aluminum
• 22137 — 2.250" "Male" V-Band Flange 304 Stainless

• 22153 — 2.250" "Female" V-Band Flange 304 Stainless

• 22105 — 2.250" V-Band Assembly "Male/Female" 304 Stainless

Ace Race Parts 304 Stainless Steel V-Band Clamps feature a "Standard" T-Bolt style clamping mechanism to ensure a tight, leak-free seal. V-Band Clamps and V-Band Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine and industrial applications.

This specific 304 Stainless Steel V-Band Clamps is only compatible with our Aluminum, Aluminum/Stainless Combination, and Quick Release style V-Band Clamps, Flanges or Assemblies.
