1979-2004 Mustang Rear Coil-Over Shock Single Adjustable - Spring Sold Separately

Single Adjustable Rear Coil-Over Shock

Part Number: S5248
Application: 1979-2004 Mustang
Sold as Each

Soft Settings
For Drag Racing
Allows more downward force applied to the rear tires

Medium Settings
For Performance Street
Enhances handling & cornering characteristics

Stiff Settings
For Road Racing
Provides very aggressive control over body roll

Rotating Knob Clockwise Stiffens Valving

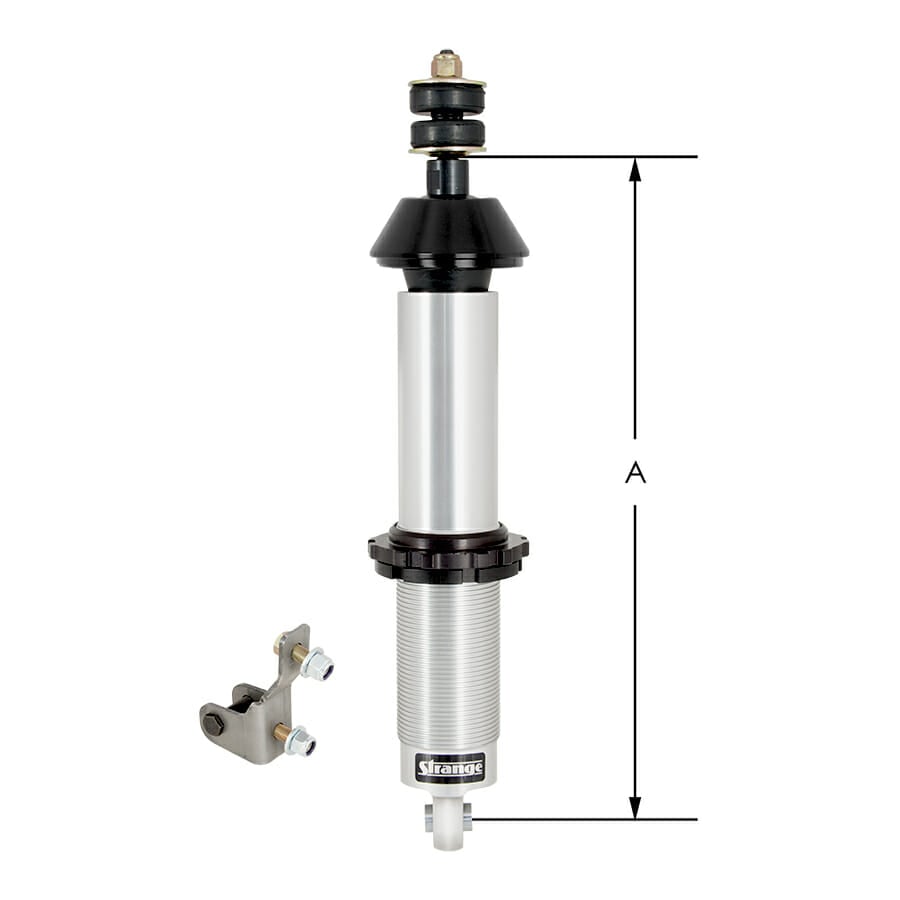

Dimension A
Extended 18.71″ / Compressed 12.2″

Features
• Lightweight aluminum body
• 10 extension settings
• Provides a wide range of control
• Easily accessible external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or re-valved

Includes
• Upper & lower spring seats
• Lower seat jam nut
• Upper stud with rubber cushion
• Concave washers & lock nut
• Lower spherical ball bearing
• Lower bracket – Drilling required
• Mounting hardware

Spring Recommendation
• 14″ x 2.5″ I.D. spring
• 125 lbs for Drag racing
• 150 lbs for Street / Track

Some Builders May Prefer 12″ Spring
Consult your chassis builder for their suggestion

Parts and Installation Guide
